Honeywell DS06G1018 Sweat 1 1/2 in. Pressure Regulating Valve

Name: Honeywell DS06G1018 Sweat 1 1/2 in. Pressure Regulating Valve
Brand: Honeywell Water
SKU: DS06G1018
Price: 53.52 USD
Availability: OutOfStock

Images for general purposes only. Actual may be different than depicted.

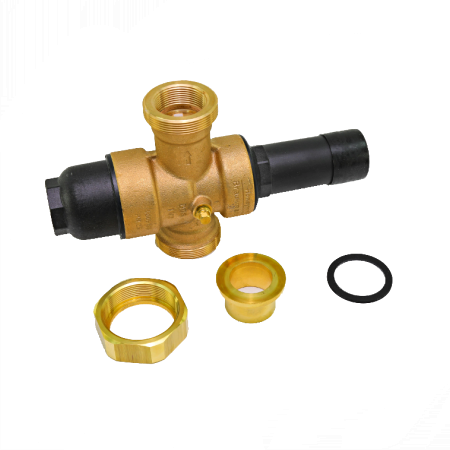

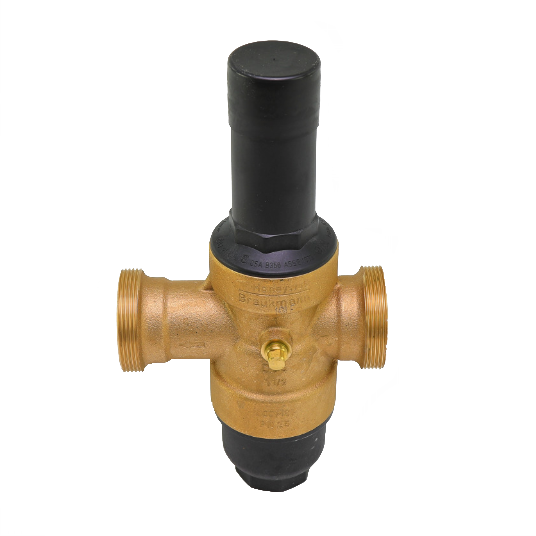

Honeywell DS06G1018 Sweat 1 1/2 in. Pressure Regulating Valve

SKU: DS06G1018

UPC: 0852678150

Brand:

Rating:

Quantity	Price	Stock
Usually Ships 1-2 Weeks Usually Ships 1-2 Weeks	$53.52 /ea	Usually Ships 1-2 Weeks

Add to Cart

Add to Wishlist

The DS06G1018 found on this page, is a direct replacement for the following obsolete item(s):

Obsolete Product	SKU
Honeywell DS06G1000 Threaded 1 1/2 Pressure Regulating Valve	DS06G1000 Brand Honeywell Water

Add to Cart

Add to Wishlist

Honeywell DS06 Series Dial Set Pressure Regulating Valve

The Honeywell DS06D, G Dial Set is a high-quality pressure regulating valve that maintains a constant outlet pressure over a wide range of inlet supply pressures. It is ideally suited for potable water and irrigation applications requiring accurate regulation. The wide outlet pressure range, high inlet pressure, and compact design allow flexibility in installation and application. To facilitate setup and checkout, the DS06D, G features a calibrated outlet pressure set dial that allows outlet pressure adjustments without the use of a gauge in most applications.

The Honeywell DS06G1018 Pressure Regulating Valve has 1-1/2 pipe size, Calibrated Adjustment Dial, 1/4" NPT Gauge Tap, 10:1 Maximum Reducing Ratio, 400 Psi Maximum Inlet Pressure, 22-130 Psi Outlet Pressure, Single Union Sweat, Bronze Body, Fabric Enforced Diaphragm, Stainless Steel and Engineered Thermoplastics.

Features:

Built-in, factory-calibrated outlet pressure adjustment dial.
The Noncorroding unitized cartridge contains all working parts and is easily replaceable.
Outlet pressure range from 15 to 130 psi in all models, inlet rating 400 psi.
Includes built-in strainer and thermal bypass.
Narrow design to accommodate restricted installation requirements.
Balanced seat construction provides superior pressure regulation.
Inlet and outlet are internally threaded NPT and externally threaded for use with union assemblies.
Gauge taps provided on all models.

Pipe Size	1 1/2 inch
Operating Temperature Range	82 C (180 F) Maximum
Outlet Pressure Adjustment Range	15-130 psi
Max. Inlet Pressure Rating	400 psi
Gauge Tap	1/4 in. NPT
Reducing Ratio	10:1 maximum

Download Product Information:

Honeywell DS06 Series Pressure Regulating Valve Technical Datasheet
