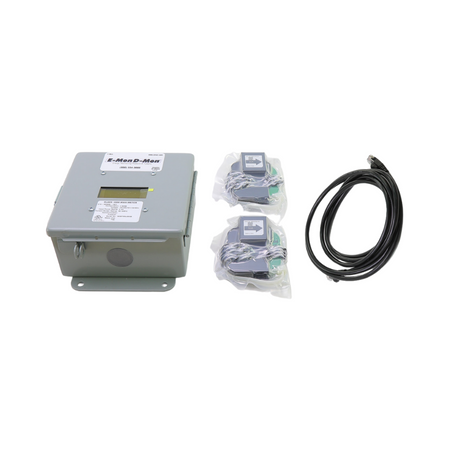

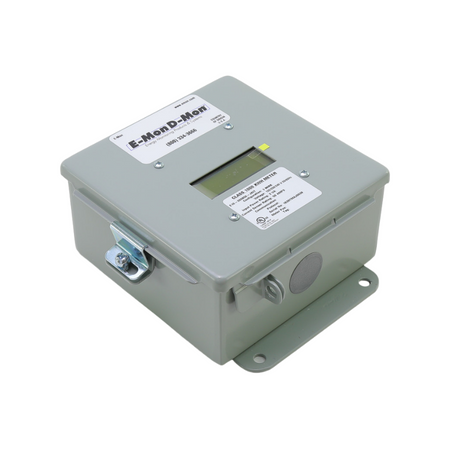

The Honeywell E10-320850-JKIT is a single-phase E-MON Class 1000 smart meter with 2 split-core current sensors. This device operates at 120/208-240V and 50 Amp power ratings. It has a steel enclosure with padlocking hasp and 3-wire. UL Listed.
The smart meter has a non-volatile memory and fixed kWh pulse output that maintains reading even in a power failure. This features a direct-read 2-line alpha-numeric LCD, current sensor installation diagnostics, revenue-grade accuracy, and kWh resettable to zero.
This electronic device records electric energy consumption with an accurate remote mounting of current sensors. Suitable for indoor installation and compatible with Honeywell E-Mon Energy™ software.
The E-MON Class 1000 is also available with the following model numbers:
| Voltage Input Configuration | Model Number | Amperage |
| 120V, 1-Phase, 2W (Supplied with (1) split-core current sensor) |
E10-212025-JKIT E10-212050-JKIT E10-2120100-JKIT E10-2120200-JKIT |
25 Amp 50 Amp 100 Amp 200 Amp |
| 120/208-240V, 2-Phase, 3W (Supplied with (2) split-core current sensors) |
E10-320825-JKIT E10-3208100-JKIT E10-3208200-JKIT |
25 Amp 100 Amp 200 Amp |
| 277V, 1-Phase, 2W (Supplied with (1) split-core current sensor) |
E10-227725-JKIT E10-227750-JKIT E10-2277100-JKIT E10-2277200-JKIT |
25 Amp 50 Amp 100 Amp 200 Amp |
| Approval | UL Listed |
|---|---|
| Input Voltage | 120/208-240V |
| Number of Conductors | 3-Wire |
| Number of Phase | Single-Phase |
| Amperage | 50 Amp |
| Enclosure Type | Standard Metal |
Download Product Information:
Honeywell E-MON Class 1000 Smart Meter Data Sheet
Honeywell E-MON Class 1000 Smart Meter Installation Instruction
