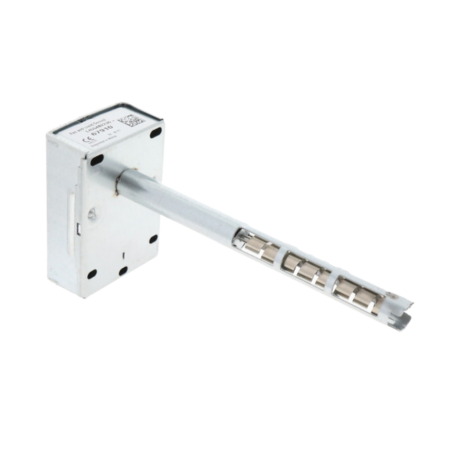

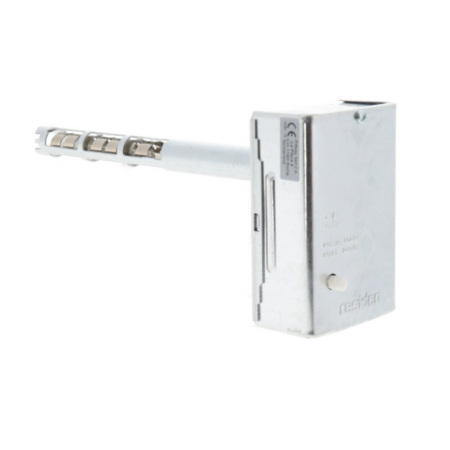

The Honeywell L4064B2236 is a fan and limit controller with an 8” element insertion tube. This device handles the on-and-off operation of the unit. UL and CSA Listed.

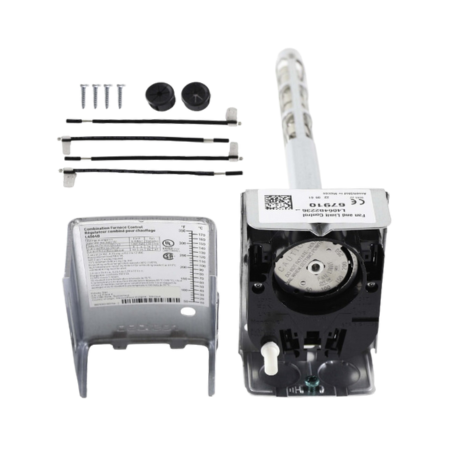

Inclusions:
The controller switches open the limit circuit if the plenum temperature exceeds the preset safety limit (resets automatically) and turns the fan on and off according to the plenum temperature.
The L4064B2236 is suitable for various types of forced air heating systems with line or low voltage. It has a surface or universal mounting bracket available.
| Fan On Range | 65 to 215°F |
|---|---|
| High Limit Stop | 200°F |
| Low Limit Stop | 100°F |
| Fan on Stop | 100°F |
| Fan Off Range | 50 to 200°F |
| Differential Temperature (High Limit) | 25°F |
| Operating Temperature Range | -40 to 190°F |
| High Limit Temperature Range | 100 to 250°F |
| Maximum Ambient Temperature | 190°F (Switch); 350°F (Sensing Element) |
| Element Insertion Size | 8" |
Download Product Information:
Honeywell L4064 Series Fan & Limit Controller Datasheet
Honeywell L4064B Fan & Limit Controller Installation Instructions
