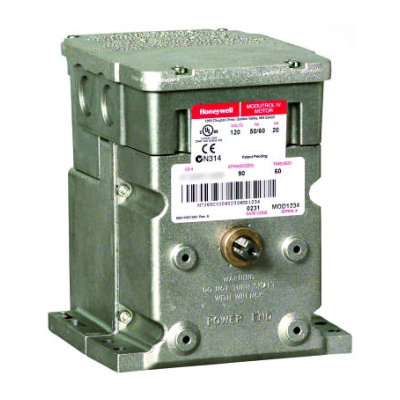

Honeywell M9194C1005 Proportioning Control Motor 120V Non-Spring Return

Name: Honeywell M9194C1005 Proportioning Control Motor 120V Non-Spring Return
Brand: Honeywell
SKU: M9194C1005
Price: 4364.24 USD
Availability: InStock

Images for general purposes only. Actual may be different than depicted.

Honeywell M9194C1005 Proportioning Control Motor 120V Non-Spring Return

SKU: M9194C1005

Brand:

Rating:

Quantity	Price	Stock
2 please contact for availability	$4,364.24 /ea	2

Add to Cart

Add to Wishlist

Add to Cart

Add to Wishlist

Honeywell M9194C1005 Proportioning Control Motor 120V Non-Spring Return

Series 91 Modutrol IV motors non-spring return modulating proportional control motors are used with controllers that provide a Series 91 output to operate dampers or valves.

Features:

Integral junction box provides NEMA 3 weather protection if motor is mounted in the upright position.
Motor and circuitry operate from 24 Vac.
Quick-connect terminals are standard--screw terminal adapter is available.
Adapter bracket for matching shaft height of older motors is available.
Motors have field adjustable stroke (90 to 160 degrees).
Integral auxiliary switches are available factory mounted, or can be field added.
All models have dual shafts (slotted and tapped on both ends).
All models have auxiliary switch cams.
Fixed torque throughout the entire voltage range.

Dimensions	6 7/16 in. high x 5 1/2 in. wide x 7 5/16 in. deep
Frequency	50 Hz; 60 Hz
Supply Voltage	120V
Ambient Temperature Range	-40 F to +150 F (-40 C to +60 C)
Motor shafts	Dual-ended shaft

Download Product Information:

Honeywell M9194C1005 Proportioning Control Motor Data Sheet

Honeywell M9194C1005 Damper Adjustment Instructions
