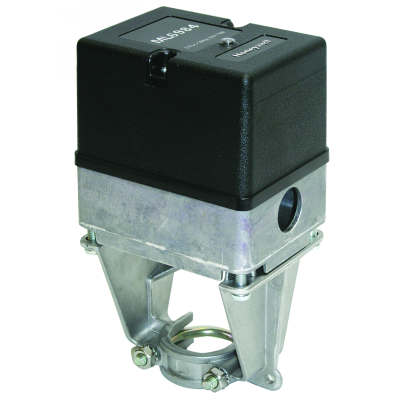

Honeywell ML6984A4000 Direct-Coupled Valve Actuator

Name: Honeywell ML6984A4000 Direct-Coupled Valve Actuator
Brand: Honeywell
SKU: ML6984A4000
Price: 342.58 USD
Availability: InStock

Images for general purposes only. Actual may be different than depicted.

Honeywell ML6984A4000 Direct-Coupled Valve Actuator

SKU: ML6984A4000

Brand:

Rating:

Quantity	Price	Stock
118 Usually Ships 1-2 Weeks	$342.58 /ea	118

Buy in Bulk & Save

Quantity	Price
5+	$331.25 /ea

Add to Cart

Add to Wishlist

Add to Cart

Add to Wishlist

Honeywell ML6984A4000 Direct-Coupled Valve Actuator

The ML6984 and ML7984 are self-contained, self-adjusting, motorized valve actuators that mount directly onto V5011 twoway and V5013 three-way globe valves, providing linear stem operation between 1/2 in. (13 mm) and 1 in. (25 mm). ML6984 is for use with low voltage SPDT Series 20, Series 60 (on-off), or SP3T Series 60 (floating) electro-mechanical and electronic controllers. ML7984 is for use with Series 70 0-10 Vdc, 2-10 Vdc, 4-20 mA; electronic Series 90 “SuperMod”; and 135 ohm modulating controllers.

Features:

Allows the use of one common transformer power supply for multiple actuators and controllers
Self-contained, motorized valve linkage
Linkage self-adjusts to valve stroke of 1/2 to 1 in. (12 to 25 mm)
Multi-pose mounting
Strong valve seat closing force 160 lbf (710 N)
Compact size for easy installation in confined area.
One device for either 24 Vac or 28 Vdc power supply application
Electronic current sensing provides internal protection and positive full closing force
Field-addable position feedback/auxiliary switch module available (5-wire control wiring only)
ML6984 models are compatible with 3-wire control systems

Dimensions	6 13/16 in. high x 4 in. wide x 3 3/16 in. deep
Frequency	50 Hz; 60 Hz
Supply Voltage	28 Vdc; 24 Vac
Power Consumption	Driving-- 6 VA, Holding-- 12 VA
Ambient Temperature Range	-40 F to +150 F (-40 C to +65 C)

Download Product Information:

Honeywell ML6984 Direct Coupled Valve Actuators Data Sheet
