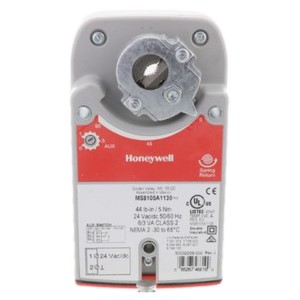

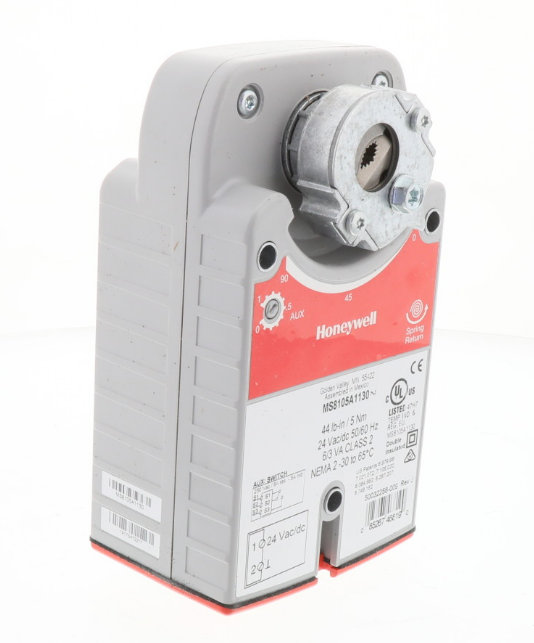

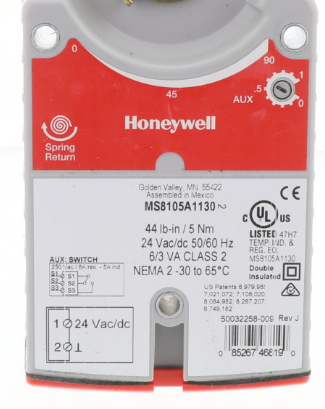

Honeywell MS8105A1130 Actuator Spring Return 24V

The MN8105A1130 is a Zelix S05 series spring return direct coupled actuator from Honeywell. They are used within heating, ventilating, and air-conditioning systems that require 2-position contol signal with an internal auxiliary switch and a spring return fail-safe operation.

Features:

• Brushless DC submotor with electronic stall protection for floating/modulating models.
• Brush DC submotor with electronic stall protection for 2-position models.
• Self-centering shaft adapter (shaft coupling) for wide range of shaft sizes.
• Models available with three torque ratings: 44 lb-in. (5 N•m), 88 lb-in. (10 N•m), and 175 lb-in. (20 N•m).
• Models available for use with two-position, single pole single throw (spst), line- (Series 40) or low- (Series 80) voltage controls.
• Models available for use with floating or switched single-pole, double-throw (spdt) (Series 60) controls.
• Models available for use with proportional current or voltage (Series 70) controls.
• Models available with combined floating/modulating control in a single device.
• Models available with adjustable zero and span.
• Models available with line-voltage internal end switches.
• Access cover to facilitate connectivity.
• Metal housing with built-in mechanical end limits.
• Spring return direction field-selectable.
• Shaft position indicator and scale.
• Manual winding capability with locking function.
• UL (cUL) listed and CE compliant.
• All Models are plenum-rated per UL873.
• 24Vac/Dc
• Two Position Control Signal
• 1 Internal Auxiliary Switch ( Adjustable 0-95 Degree)
• 45 Second Nominal Driving Time
• 25 Second Maximum Spring Return
• 44 Lb-In Torque
• 95 ± 3 Degrees rotational stroke
• Enclosed Screw Terminal Strip Electrical Connections
• Nema 2 Rated
• Self Centering Clamping Shaft Adapter
• 5-95% RH Humidity Range
