TK300-30A-1FM

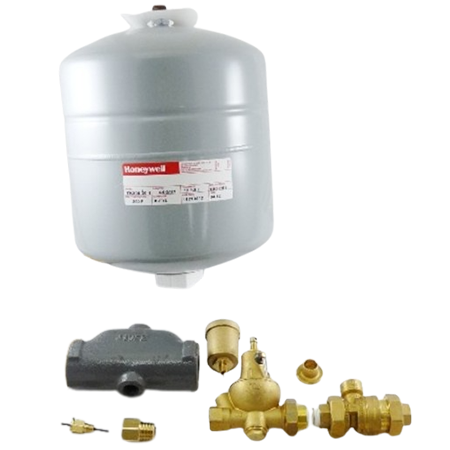

The TK300-30A-1FM is a boiler trim kit that consists of an expansion tank, boiler feed combination valve, check valve, and air purger.  It has a 1/2" male NPT tank connection size with 4.4 Gallons (16.7 liters) total volume and 2.5 Gallons (9.5 liters) maximum accepted volume.

The boiler trim kit is used to make installation quick and easy with an all-in-one package.  The unit's check valve enables the replacement of the air vent or expansion tank without draining the heating system saving time.

The AP400 cast iron air purger, FM911 boiler backflow preventer/fill valve, and SCV-050 service check valve replacement parts are also available.
Height (in.) 15 1/2 in.
Tank Connection Size 1/2" male NPT
Maximum Operating Temperature 240° F (116° C)
Maximum Operating Pressure 100 psi (689 kPa)
Pre-charge Pressure 12 psi (83 kPa)
Total Volume 4.4 Gallons (16.7 liters)
Maximum Accepted Volume 2.5 Gallons (9.5 liters)
Air Purger Connection Size 1" NPT
Tank Material Steel
Diaphragm Butyl/EPDM
