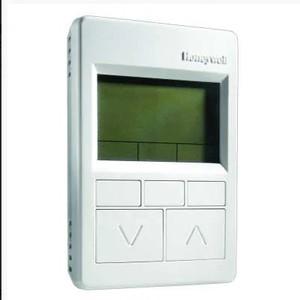

Honeywell TR71-H Zio LCD/Two-wire Sylk Wall Module with Humidity

Honeywell TR71-H Zio LCD/Two-wire Sylk Wall Module with Humidity
Images for general purposes only. Actual may be different than depicted.
Honeywell TR71-H Zio LCD/Two-wire Sylk Wall Module with Humidity Honeywell TR71-H Zio LCD/Two-wire Sylk Wall Module with Humidity

Honeywell TR71-H Zio LCD/Two-wire Sylk Wall Module with Humidity

SKU: TR71-H
Rating:
Quantity Price Stock
2
Usually Ships 1-2 Weeks
$328.04     /ea
2
0
$0.00
0
$0.00
0
TR71-H
Honeywell TR71-H Zio LCD/Two-wire Sylk Wall Module with Humidity

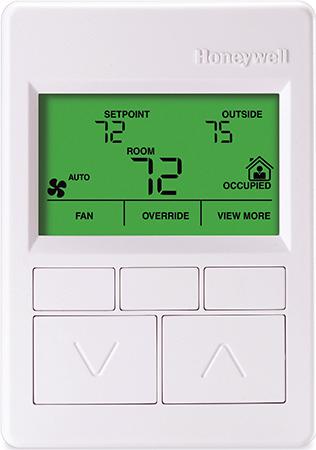

The TR70 and TR71 Zio sensors are 2-wire, non-polarity sensitive, Sylk™ bus communicating wall modules for use with Spyder™ programmable controllers which are compatible with the Sylk bus. All models have a space-temperature sensor, network bus jack, and an LCD with three soft keys and two Up/Down adjustment keys.
The wall module has a snap in mounting to a subbase that may be mounted on a wall, on a standard utility conduit box, or on a 60 mm wall outlet box. Wiring connections to the wall module are made through a cutout in the back of the wall module. All models have a space temperature sensor, network bus jack, and an LCD panel with three softkeys and two Up/Down adjustment keys.

Features:
  • Ability to control user access to controller parameters.
  • Parameter access can be customized by using the Tridium Niagara Workbench tool.
  • Programmable for: Home screen options, tenant access, contractor access, access to controller parameters, setpoint, override, fan, and other parameters.
  • Supplied with eight pre-programmed configurations (e.g. VAV with balancing) in the wall module configuration tool.
  • Ability to access and adjust most parameters in the programmable controller (except Scheduling).
  • Ability to balance the VAV system from the wall module.
  • Home screen can display one to three of any of the following parameters: Temperature Setpoint, Room Temperature, Room Humidity, Outdoor Humidity, Outdoor Temperature, and Time, or one of virtually any parameter in the controller.
  • Network bus jack.
  • Simple 2-wire terminal connection to the programmable controller and an optional 2-wire terminal connection for the network. All connections are polarity insensitive.
  • Retention of user configuration, including setpoints after a power outage.
Used with: Spyder and Stryker Controllers
Application: Wall Module Temperature and Humidity Sensor
Accuracy: ±5% RH from 20% to 80% RH
Network Communications: Two-wire Sylk and Network Jack
Operating Humidity Range (% RH) 5 to 95% RH, non-condensing
Switch Positions (Fan) Configurable
Approvals, Underwriters Laboratories Inc. UL94-HB plastic enclosure
Setpoint Temperature Range (C): Default range is 10 C to 35 C; configurable for other ranges
Operating Temperature Range (F) 30 F to 110 F
Shipping and Storage Temperature Range (F) -40 F to +150 F
