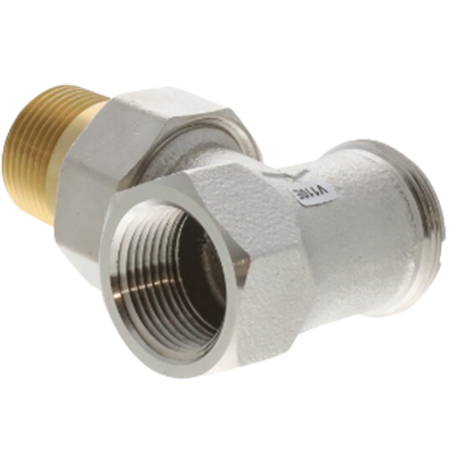

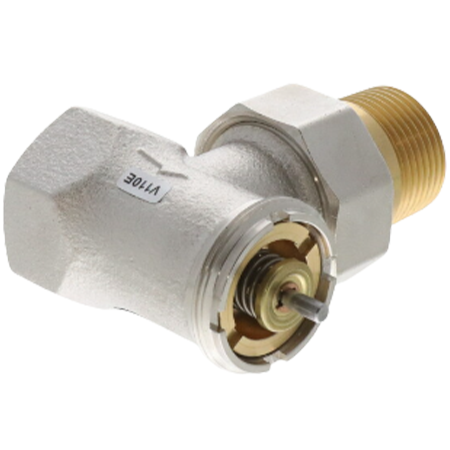

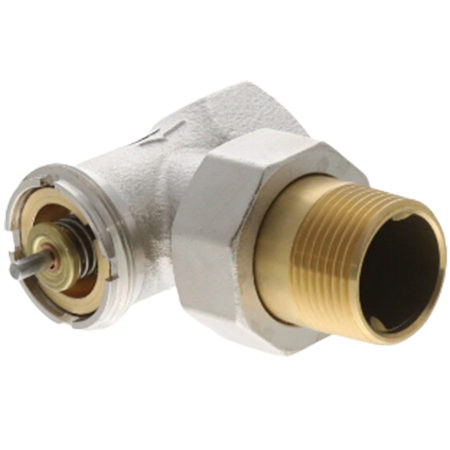

Honeywell V110E1020 Radiator Valve-Angle 0787801

Name: Honeywell V110E1020 Radiator Valve-Angle 0787801
Brand: Honeywell Resideo
SKU: V110E1020
Price: 129.28 USD
Availability: InStock

Images for general purposes only. Actual may be different than depicted.

Honeywell V110E1020 Radiator Valve-Angle 0787801

SKU: V110E1020

UPC: 8526710323

Brand:

Rating:

Quantity	Price	Stock
16 Usually Ships 1 - 2 Weeks	$129.28 /ea	16

Buy in Bulk & Save

Quantity	Price
5+	$122.81 /ea

Add to Cart

Add to Wishlist

Add to Cart

Add to Wishlist

The V110E1020 is a radiator valve that has a 193,000 BTU/hr steam capacity and 7 Cv hot water flow capacity. It is constructed with nickel-plated brass body that withstands up to 248°F (120°C) temperature, 150 psi water, 15 psi steam, and 17 psi maximum differential.

The radiator valve is ideal in tight spaces such as 2-pipe hot water and steam system applications. The unit is used to control temperature by automatically turning on or off when the temperature has been achieved.

Check out the available accessories:

CA110C107 Replacement Cartridge
MT110C1011 Cartridge Changing Tool
MT110D1019 Service Socket Tool
T104A1040 Direct Mount Actuator

High Capacity Thermostatic Radiator Actuators:

Capacity	193,000 BTU/hr
Body Material	Nickel-Plated Brass
Pipe Connection Size	1" Threaded
Maximum Water Pressure	150 psi
Maximum Steam Pressure	15 psi
Maximum Differential Pressure	17 psi
Flow Capacity	7 Cv
Applications	2-Pipe Hot Water and Steam Systems
Maximum Temperature	248°F (120°C)
Body Pattern	Angle
