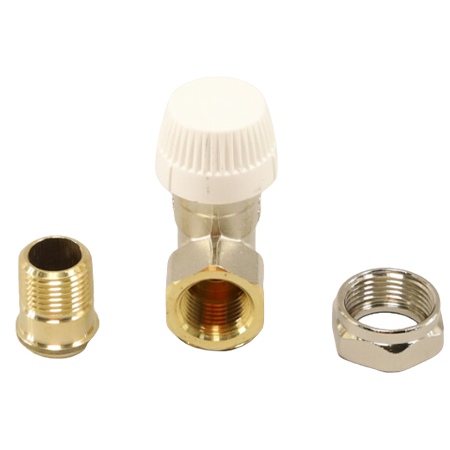

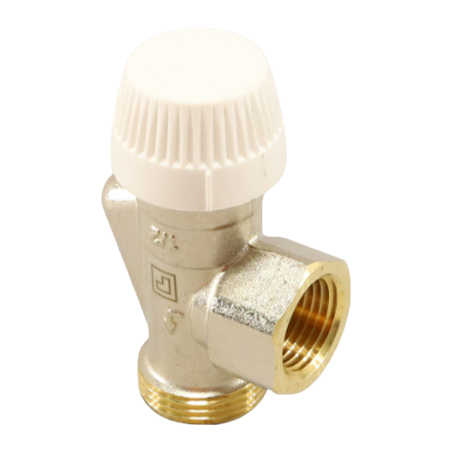

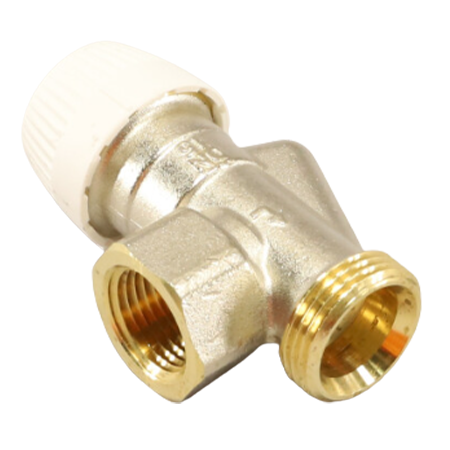

The V2040ASL15 is a one-pipe steam thermostatic radiator valve that has a 1/2" connection size. It has a brass body and double EPM seal construction that can withstand up to 145 psi (10 bar) water rating & 15 psi (103 kPa) maximum pressure for steam.
The thermostatic radiator valve is designed for two-pipe steam and hot water system applications. The unit allows automatic control of temperature in each unit. The T3019W0NA direct-mount internal sensor accessory is also available.
The V2040ASL15 is easy to install and mounted on the inlet side of a radiator or convector. It also has an arrow that indicates the direction of flow.
| Pressure Ratings Hot Water | 150 psi (1034 kPa) |
|---|---|
| Connection Size | 1/2" NPT |
| Maximum Temperature Range | 248°F (120°C) |
| Pressure Ratings Steam | 15 psi (103 kPa) |
| Flow Capacity | 2.5 Cv |
| Body Material | Brass |
| Stem Material | Double EPDM |
| Cartridge Material | Brass and stainless steel with EPDM seat disk |
| Body Pattern | Horizontal Angle |
| Capacity | 59,100 Btu/hr |
