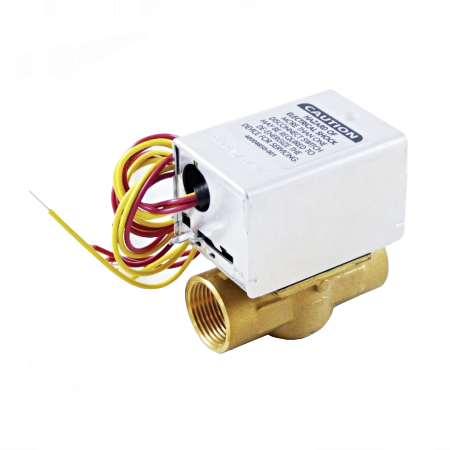

Honeywell V8043E1137 Motorized Zone Valve 24V 1" Normally Closed 10Cv 20 PSI

Name: Honeywell V8043E1137 Motorized Zone Valve 24V 1" Normally Closed 10Cv 20 PSI
Brand: Honeywell
SKU: V8043E1137
Price: 150.80 USD
Availability: InStock

Images for general purposes only. Actual may be different than depicted.

Honeywell V8043E1137 Motorized Zone Valve 24V 1" Normally Closed 10Cv 20 PSI

SKU: V8043E1137

UPC: 8526781238

Brand:

Rating:

Quantity	Price	Stock
13 Usually Ships 1-2 Weeks	$150.80 /ea	13

Buy in Bulk & Save

Quantity	Price
5+	$143.27 /ea

Add to Cart

Add to Wishlist

The V8043E1137 found on this page, is a direct replacement for the following obsolete item(s):

Obsolete Product	SKU
Honeywell MZV526E-T Zone Valve 1" 24V	MZV526E-T Brand Honeywell Water

Add to Cart

Add to Wishlist

Honeywell V8043 1000 Series Motorized Zone Valve

Two-way on-off low voltage valves consist of an actuator and valve assembly for controlling the flow of hot water.

The Honeywell V8043E1137 Normally Closed Zone Valve has a connection size of 1" NPT. It consists of Stainless Steel Stem, Brass Body, Brass Seat, Buna-N (NBR) Rubber Ball, and Manual Opener. Use this valve in closed-loop hydronic systems that do not contain dissolved oxygen in system water, such as fresh water from frequent source of makeup water. Valve designed for cycling (not constantly powered on) applications.

Features:

Manual opener (on all models, except straight-through, normally open valves) for valve operation on power failure; valve returns to automatic position when power is restored.
All models may be installed without disassembling the valve.
Compact construction for easy installation.
Complete powerhead may be removed or replaced without breaking plumbing line connections or draining the system.
Actuator motor may be replaced without removing the valve body or draining the system.

Pipe Size	1"
Voltage	24V
Timing	Nominal Open--15 sec
Capacity	10 Cv (8.6 Kv)
Maximum Differential Pressure (Closeoff)	6.5 psi (45 kPa)
Electrical Connections	18 in. leads (457 mm leads)
Valve Action	Spring Return to Close
Auxiliary End Switch	N.O. SPST
De-energized Position	Normally Closed
Body Pattern	Two-way, Straight-through

Download Product Information:

Honeywell V8043 1000 Series Motorized Zone Valves Technical Datasheet
