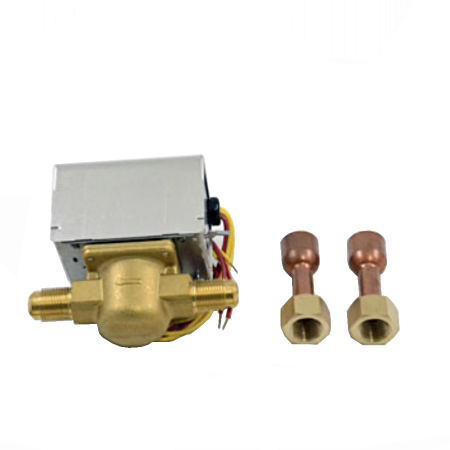

Honeywell V8043G1034 Motorized Zone Valve 24V 3/8" Normally Open 3.5CV 20 PSI

Honeywell V8043G1034 Motorized Zone Valve 24V 3/8" Normally Open 3.5CV 20 PSI
Images for general purposes only. Actual may be different than depicted.
Honeywell V8043G1034 Motorized Zone Valve 24V 3/8" Normally Open 3.5CV 20 PSI

Honeywell V8043G1034 Motorized Zone Valve 24V 3/8" Normally Open 3.5CV 20 PSI

SKU: V8043G1034
Rating:
Quantity Price Stock
1
Usually Ships 1-2 Weeks
$146.51     /ea
1

Buy in Bulk & Save

Quantity Price
5+ $139.19 /ea
Add to Cart
Add to Wishlist
Add to Cart
Add to Wishlist
0
$0.00
0
$0.00
0
V8043G1034
Honeywell V8043 Motorized Zone Valve

Two-way on-off low voltage valves consist of an actuator and valve assembly for controlling the flow of hot water.

The Honeywell V8043G1125 Normally Closed Zone Valve has a connection size of 1/2" inverted flare. It consists of Stainless Steel Stem,  Brass Body, Brass Seat, Buna-N (NBR) Rubber Ball, and Manual Opener. Use this valve in closed loop hydronic systems that do not contain dissolved oxygen in system water, such as fresh water from frequent source of makeup water. Valve designed for cycling (not constantly powered on) applications.

Features:

  • Manual opener (on all models, except straight-through, normally open valves) for valve operation on power failure; valve returns to automatic position when power is restored.
  • All models may be installed without disassembling the valve.
  • Compact construction for easy installation.
  • Complete powerhead may be removed or replaced without breaking plumbing line connections or draining the system.
  • Actuator motor may be replaced without removing the valve body or draining the system.
Pipe Size 3/8"
Voltage 24V
Timing Nominal Open--15 sec
Capacity 3.5 Cv (3 Kv)
Maximum Differential Pressure (Closeoff 20 psi (138 kPa)
Electrical Connections 18 in. leads (457 mm leads)
Valve Action Spring return to close
Auxiliary End Switch N.O. SPST
De-energized Position Normally Closed
Body Pattern Two-way, Straight-through
