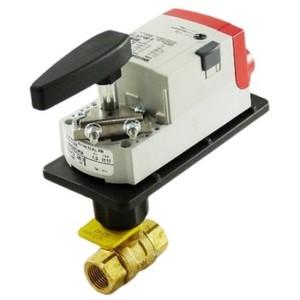

Honeywell VBN2DHSXA100 Threaded Control Ball Valve & Actuator Assembly 1.25" NPT 2-Position Spring Return Normally Open 24V with Auxiliary Switch

The VBN2 2-Way Control Ball Valves and VBN3 3-Way Control Ball Valves control hot and chilled water with glycol solutions up to 50% in heating, ventilating, and air conditioning (HVAC) systems to provide two-position or modulating functions. These control ball valves can be ordered alone or with spring return or non-spring return actuators.

Flow Characteristics:

The VBN2 Two-Way Ball Valves have:

• equal percentage flow characteristic with characterized flow control insert.

The VBN3 Three-Way Ball Valves have:

• between ports A and AB: equal percentage flow characteristic.
• between ports B and AB: linear flow characteristic at approximately 80% of the nominal Cv rating.


Features:

• Sizes from 1/2 to 3 in. with internal (female) NPT connections.
• Equal percentage flow characteristic.
• Reduced B port CV for constant loop flow.
• Choice of factory-installed actuation: floating, modulating (2-10 V), spring return or non-spring return 2-Position, Spring Return Modulating/Floating.
• Field configurable for normally open or normally closed fail-safe position.
• Removable manual operating handle to control valve during installation or in an event of power failure.
• Actuator can be mounted on the valve in any of four orientations.
• Field-serviceable stem assembly.
• Wide range of CV choices from 0.33 to 266.
• Nickel-chrome plated brass or 316 stainless steel ball and stem.
• Valve installs in a globe valve “T” pattern, no extra elbows or piping required.
• Mixing or Diverting control for 3-way valves.
• ANSI Class IV seat leakage specification (0.01% of CV) for 3-way A port and ANSI Class III seat leakage specification (0.1% of CV) for 3-way B port.

**** PLEASE NOTE: ****

Honeywell VBN2DHSXA100 Threaded Control Ball Valve & Actuator Assembly is now Obsolete.  VBN2DHSXA100 has multiple options for replacement (VBN2BHSXA100, VBN2DKSXA100). Please click on appropraite link below to view the details.

Honeywell VBN2BHSXA100 Threaded Control Ball Valve & Actuator Assembly

Honeywell VBN2DKSXA100 Threaded Control Ball Valve & Actuator Assembly
