Honeywell VBN3BKPX0000 Brass Threaded Control Ball Valve 3/4" NPT 3-Way 11 Cv for DCA Actuator

Name: Honeywell VBN3BKPX0000 Brass Threaded Control Ball Valve 3/4" NPT 3-Way 11 Cv for DCA Actuator
Brand: Honeywell
SKU: VBN3BKPX0000
Price: 132.31 USD
Availability: OutOfStock

Images for general purposes only. Actual may be different than depicted.

Honeywell VBN3BKPX0000 Brass Threaded Control Ball Valve 3/4" NPT 3-Way 11 Cv for DCA Actuator

SKU: VBN3BKPX0000

Brand:

Rating:

Quantity	Price	Stock
Usually Ships 2 - 4 Weeks Usually Ships 2 - 4 Weeks	$132.31 /ea	Usually Ships 2 - 4 Weeks

Buy in Bulk & Save

Quantity	Price
4+	$125.70 /ea

Add to Cart

Add to Wishlist

Add to Cart

Add to Wishlist

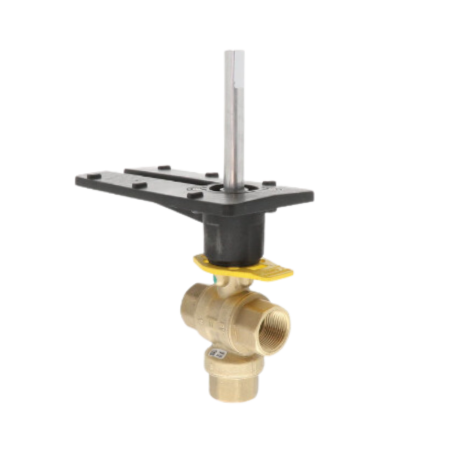

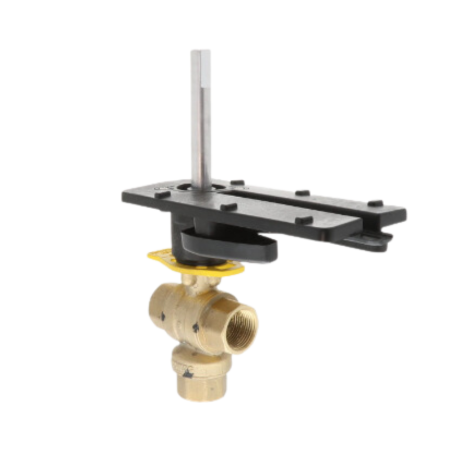

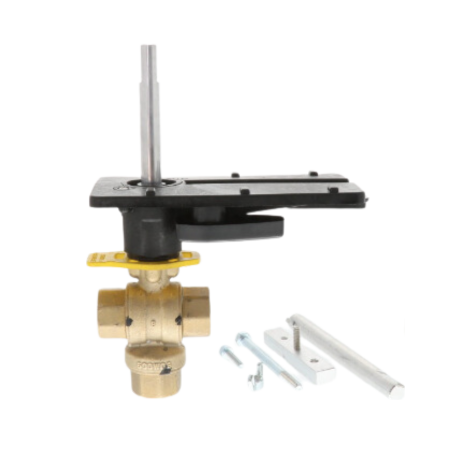

The Honeywell VBN3BKPX0000 is a 3-way threaded control ball valve with a 3/4" NPT connection and 11 Cv flow capacity.

This device has a brass body, nickel-chrome plated brass ball and stem, Teflon® seals with EPDM O-rings seat, and a Noryl® flow control insert.

Features:

Mixing or Diverting Control

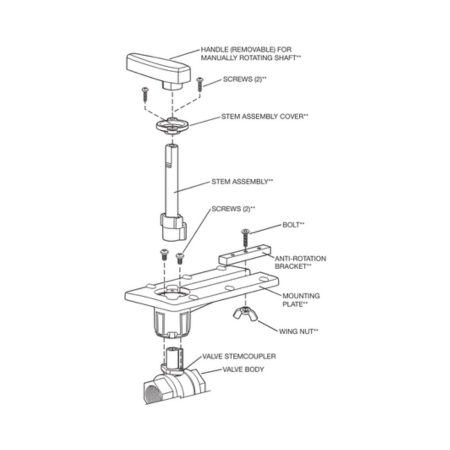

Field-Serviceable Stem Assembly
Removable Manual Operating Handle in case of Power Loss
Equal Percentage Flow Port A to AB, Linear B to AB
ANSI Class IV Seat Leakage Specification for A Port
ANSI Class III Seat Leakage Specification for B Port

The ball valve is used with a direct-coupled actuator for chilled or hot water with up to 50% glycol solutions, 250°F maximum temperature, and 360 psi maximum pressure.

The VBN3BKPX0000 directly replaces VBN3B011.00PX. Suitable for process control, industrial automation, irrigation systems, and HVAC systems to provide two-position or modulating functions.

Note: It is not recommended for use with steam or fuels and open loop systems.

Approvals and Standards	ANSI Class IV Close-Off/Leakage (Maximum 0.01% of CV let by)
Flow Characteristic	Port A to AB: Equal Percentage; Port B to AB: Linear
Valve Type	Control Ball Valve
Body Pattern	3-Way
Flow Capacity	11 Cv
Connection Size	3/4" NPT
Body Material	Brass
Controlled Fluid	Chilled/Hot Water with up to 50% Glycol
Maximum Safe Operating Rating	360 psi (2482 kPa)
Fluid Temperature Range	-22 to 250°F (-30 to 121°F)
