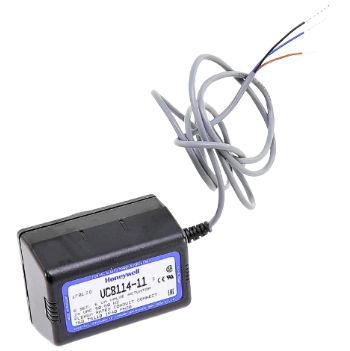

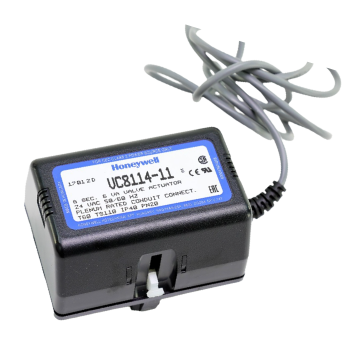

Honeywell VC8114ZZ11 2 Position (On/Off) 24V (60HZ) 2 Wire Common Actuator

Honeywell VC8114ZZ11 2 Position (On/Off) 24V (60HZ) 2 Wire Common Actuator
Images for general purposes only. Actual may be different than depicted.
Honeywell VC8114ZZ11 2 Position (On/Off) 24V (60HZ) 2 Wire Common Actuator Honeywell VC8114ZZ11 2 Position (On/Off) 24V (60HZ) 2 Wire Common Actuator

Honeywell VC8114ZZ11 2 Position (On/Off) 24V (60HZ) 2 Wire Common Actuator

SKU: VC8114ZZ11
UPC: 8526781758
Rating:
Quantity Price Stock
217
Usually Ships 1-2 Weeks
$68.28     /ea
217

Buy in Bulk & Save

Quantity Price
5+ $64.86 /ea
0
$0.00
0
$0.00
0
VC8114ZZ11
Honeywell VC8114ZZ11 2 Position (On/Off) 24V (60HZ) 2 Wire Common Actuator

Control central heating and cooling, fan coil systems, radiators and convectors. Depending on the model, it can be controlled by a low voltage SPST or SPDT switch, pulse-width modulated 24 Vac signal, or floating input, modulating controller.

Features:
  • Use with two-way or three-way valves.
  • Double insulated actuator.
  • Five foot plenum-rated cable.
  • Quick and easy replacement of moving parts.
  • Actuator head installation does not require draining the system.
  • Selectable/switchable electronic fail safe normally open or normally closed.
  • Available with valve bodies with 1000-series 2-way and 6000-series 3-way cartridges for new construction.
  • All VC Series actuator-valve combinations provide 60 psi close-off.
Used With VC Series Valves, 1000 Series 2-way and 6000 Series 3-way
Mounting Direct Coupled
Operating Humidity Range (% RH) 5 to 95% RH, non-condensing
Ambient Temperature Range (C) 0 C to 65 C (32 F to 150 F)
Maximum Differential Pressure Ratings (Close-off) (psi) 60 psid

Download Product Information:

Honeywell 272629A Adapter Data Sheet
