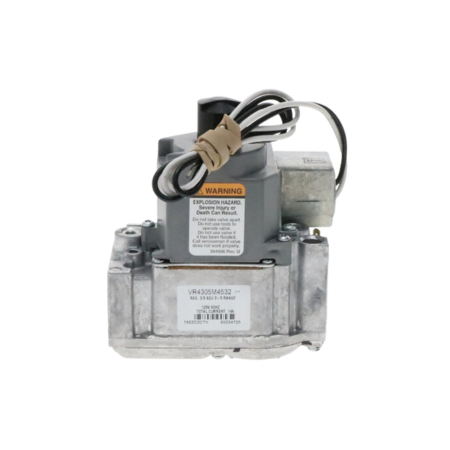

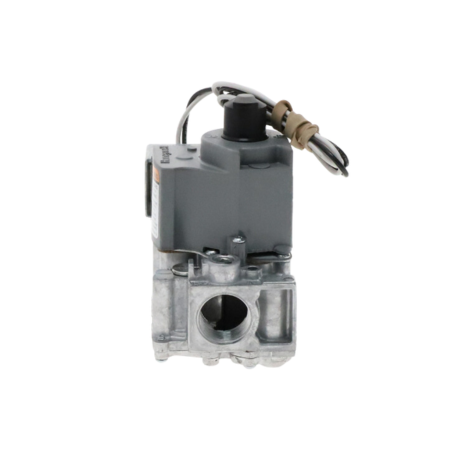

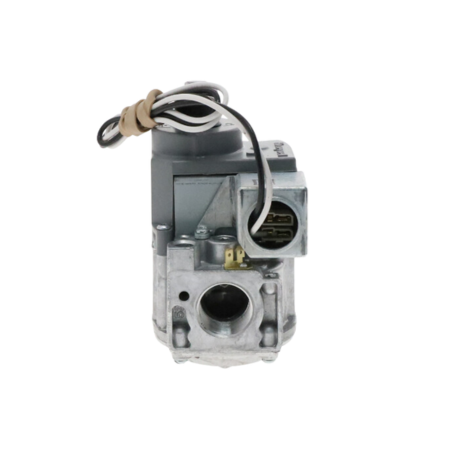

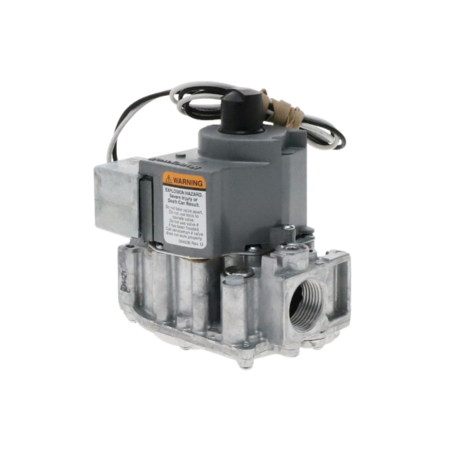

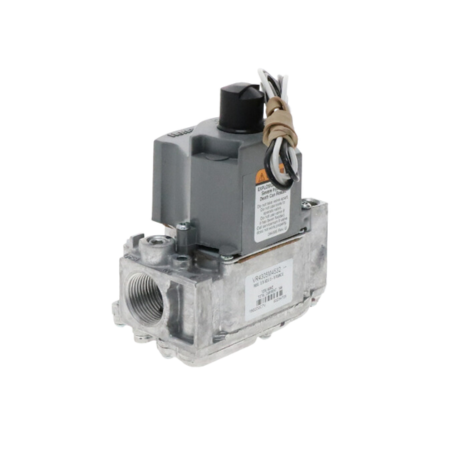

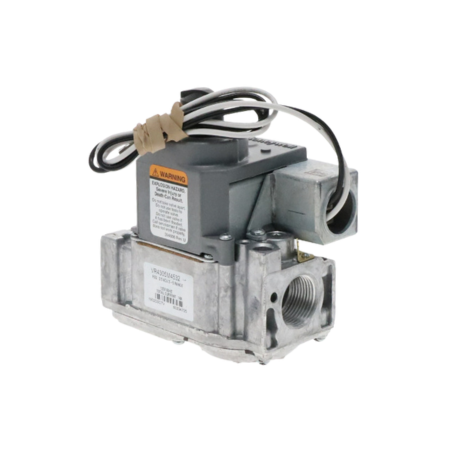

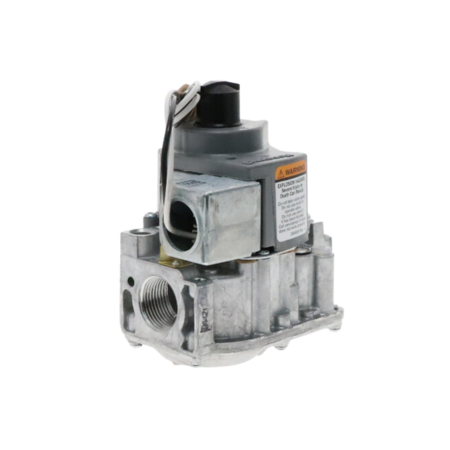

Honeywell VR4305M4532 Dual Direct Ignition Gas Valve with Standard Opening 120V

Honeywell VR4305M4532 Dual Direct Ignition Gas Valve with Standard Opening 120V
Images for general purposes only. Actual may be different than depicted.
Honeywell VR4305M4532 Dual Direct Ignition Gas Valve with Standard Opening 120V Honeywell VR4305M4532 Dual Direct Ignition Gas Valve 120V Honeywell VR4305M4532 Dual Direct Ignition Gas Valve 120V 60 Hz Honeywell VR4305M4532 Dual Direct Ignition Gas Valve 120V 60 Hz with Standard Opening VR4305M4532 Honeywell Dual Direct Ignition Gas Valve 120V VR4305M4532 Honeywell Dual Direct Ignition Gas Valve 120V 60 Hz VR4305M4532 Honeywell Dual Direct Ignition Gas Valve 120V 60 Hz with Standard Opening Honeywell VR4305M4532 Dual Direct Ignition Gas Valve Single-Stage 120V 60 Hz with Standard Opening

Honeywell VR4305M4532 Dual Direct Ignition Gas Valve with Standard Opening 120V

SKU: VR4305M4532
Rating: (1)
Quantity Price Stock
17
Call 1-866-494-4610 for stock
$380.62     /ea
17

Buy in Bulk & Save

Quantity Price
4+ $361.59 /ea
0
$0.00
0
$0.00
0
VR4305M4532
The Honeywell VR4305M4532 is a direct ignition dual automatic combination gas valve with a standard opening that operates at 120V and 60 Hz.  This single-stage device has a 3/4" inlet X 3/4" outlet connection that can handle 30,000 to 415,000 Btu.  UL and CSA Listed.

The dual automatic gas valve consists of a solenoid-operated valve that opens when the thermostat is on heat mode; closes when heat is off and a diaphragm-operated valve that opens when under the control of a regulator; closes when the gas or power supply is interrupted.

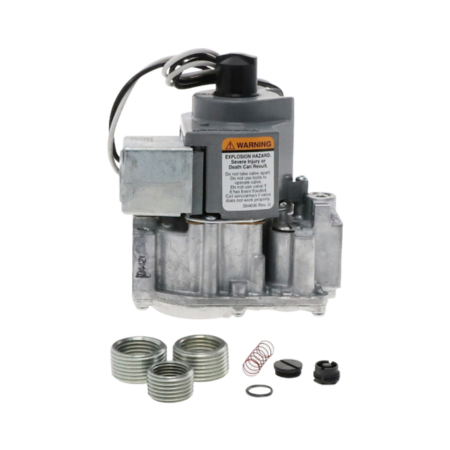

The VR4305M4532 is suitable for hot surface ignition (HSI), direct spark ignition (DSI), or gas-fired appliances.  Compatible with natural gas type and can be with LP gas by using the conversion kit that comes with it.  This device also includes a manual valve, pressure regulator, conduit cover, and two automatic operators.
Capacity 300,000 Btu
Fuel Type Natural Gas
Pressure Tapping 1/8" NPT with plug
Inlet and Outlet Size 3/4" X 3/4"
Pressure Ratings 1/2 psi (3.5 kPa)
Body Pattern Straight-Through with Standard Opening
Operating Temperature Range -40 to 79°C (-40 to 175°F)
Power Rating 120V and 60 Hz
Pressure Regulator Setpoint 3.5" W.C. (0.87 kPa)
Ignition Type Direct Ignition
