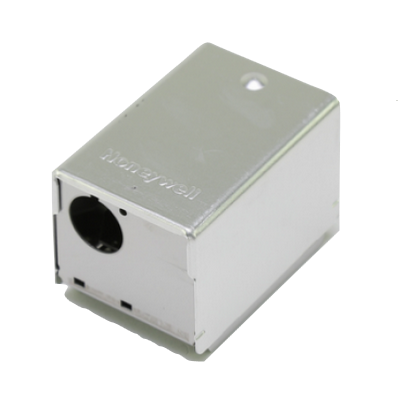

Honeywell VU844A1060 Fan Coil Valve Actuator 24V 50/60Hz

Name: Honeywell VU844A1060 Fan Coil Valve Actuator 24V 50/60Hz
Brand: Honeywell
SKU: VU844A1060
Price: 117.29 USD
Availability: InStock

Images for general purposes only. Actual may be different than depicted.

Honeywell VU844A1060 Fan Coil Valve Actuator 24V 50/60Hz

SKU: VU844A1060

Brand:

Rating:

Quantity	Price	Stock
33 Usually Ships 1-2 Weeks	$117.29 /ea	33

Buy in Bulk & Save

Quantity	Price
5+	$111.42 /ea

Add to Cart

Add to Wishlist

Add to Cart

Add to Wishlist

Honeywell VU844A1060 Fan Coil Valve Actuator 24V 50/60Hz

The humidity resistant, Fan Coil Valve Actuators are used in conjunction with VU52, VU53 and VU54 valves for controlling the flow of hot or chilled water in commercial HVAC equipment such as fan coil units, terminal reheat coils and convectors.

Features

Compact construction for easy installation.
Fits under the cover of most baseboard convectors with actuator fitted to valve body.
One-button, quick release. Secure 3-point, metal latch to valve body.
Spring return operation.
Stainless steel case and aluminum cover. Rust-proof nickel-plated motors available.
Line or low voltage, rust-resistant motors.
Manual opener for installation and valve operation on power failure.
Valve returns to automatic position when power is restored.
Actuator may be reinstalled or serviced without draining the system or disassembling the valve.
Slotted conduit hole for faster wiring.

Ambient Temperature Range	34 F to 125 F ambient at 200 F Fluid; 1 C to 52 C ambient at 93 C Fluid
Control Signal	2-Position SPST
Fail Safe Mode	Spring Return
Stroke (in)	45-degree
Timing, Nominal	Driving @ 60 Hz (sec)-- 15 sec maximum

Download Product Information:

Honeywell Fan Coil Valve Actuators Installation Instructions

Honeywell Fan Coil Valve Actuators Product Datasheet
