Hubbell Industrial Controls HC69JG8Y Pressure Switch 3-Phase 5Hp 240V 115-150 psi

Hubbell Industrial Controls HC69JG8Y Pressure Switch 3-Phase 5Hp 240V 115-150 psi
Images for general purposes only. Actual may be different than depicted.

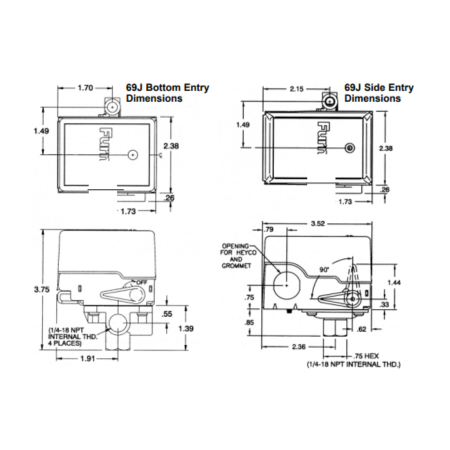

Hubbell Industrial Controls HC69JG8Y Pressure Switch 3-Phase 5Hp 240V 115-150 psi Hubbell Industrial Controls HC69JG8Y Pressure Switch 5Hp 115-150 psi Hubbell Industrial Controls HC69JG8Y Pressure Switch Dimensions

Hubbell Industrial Controls HC69JG8Y Pressure Switch 3-Phase 5Hp 240V 115-150 psi

SKU: HC69JG8Y
Rating:
Quantity Price Stock
Usually Ships 2 - 4 Weeks
Usually Ships 2 - 4 Weeks
$200.28     /ea
Usually Ships 2 - 4 Weeks
0
$0.00
0
$0.00
0
HC69JG8Y

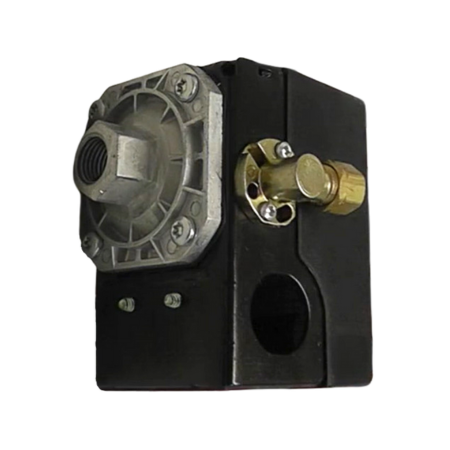

The Hubbell Industrial Controls HC69JG8Y is a 3-phase air pressure switch with an unloader valve that operates at 5Hp and 240V power supply.  UL, CSA, and CE Approved.

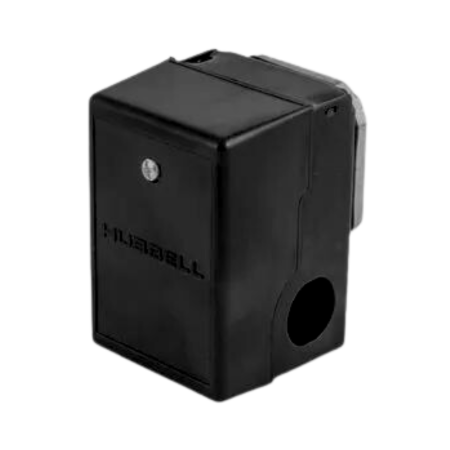

This pressure switch features 1/4" female NPT fittings and is factory-set to handle a pressure range of 115 to 150 psi.  It includes a rugged cover with a NEMA 1 enclosure rating for durability.

The HC69JG8Y is ideal for air system applications.  The unloader valve can be mounted on the front or either side and rotated to any of eight different positions for flexible installation.

Note:  An optional bottom cable entry with a unique built-in clamping strain relief is available for quick and secure assembly.
Horsepower 5Hp
Factory Setting Range 115-150 psi
Minimum Close, Cut In 90 psi
Maximum Open, Cut Out 165 psi
Differential Range 25-38 psi
Connection Size 1/4" NPT
Enclosure Rating NEMA 1
Application Air System
Number of Phase 3-phase
Voltage 240V
