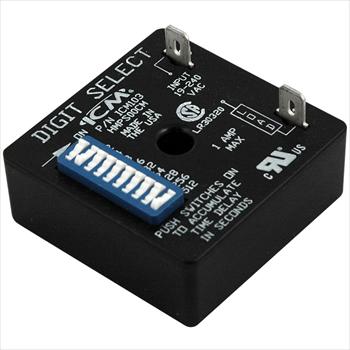

ICM Controls ICM103 Time Delay Relay (Delay on Make)

ICM Controls ICM103 Time Delay Relay (Delay on Make)
Images for general purposes only. Actual may be different than depicted.
ICM Controls ICM103 Time Delay Relay (Delay on Make)

ICM Controls ICM103 Time Delay Relay (Delay on Make)

SKU: ICM103
Rating:
Quantity Price Stock
152
Usually Ships 1-2 Weeks
$37.24     /ea
152

The ICM103 found on this page, is a direct replacement for the following obsolete item(s):

Obsolete Product SKU
ICM Controls MMS115A5Z480B 115v Delay On Make Adjustable Timer MMS115A5Z480B

Brand ICM Controls
ICM Controls MMS115A5Z480B 115v Delay On Make Adjustable Timer
0
$0.00
0
$0.00
0
ICM103
ICM Delay on Make Timer

The ICM103 Delay on Make Timer is a 1-1,023 seconds switch selectable time delay.  This highly precise digital timer is ideal for ice machine applications and has a universal voltage operation. It has a repeat accuracy of 0.5% over voltage and temperature range. When power is applied to the input, the time delay begins. After the time delay is complete, the load energizes and remains energized as long as power is applied. The control is reset by removing power during or after the time delay period.

The ICM103 Replaces:
  • A-1 7061
  • Gemline 1C213
  • Ice-O-Matic TD3001A
  • Mars 32394 & 32396
  • Robertshaw 3310-068
  • Supco TFM-19 & TFM-80
Voltage 18-240VAC; 1A, 10A Inrush, 40mA Holding Current
Frequency 50/60Hz
Switch-Settable Delays Range from 1-1,203 seconds
Voltage Drop 2.5V @ 1A
Dimensions 2" x 2"
