The ICM ICM493 is an advanced single-phase line voltage monitor with built-in surge suppression/protection. It operates on a 200–240 VAC, 50–60 Hz power supply and is UL Recognized for safety and reliability.

Features

Built-in 40A, 2-pole contactor
Bank of five line-to-line surge arresters
Easy-to-read, backlit digital display
Non-volatile memory stores the five most recent fault events
Adjustable anti-short cycle delay (0.5–10 minutes)
Automatic retry settings

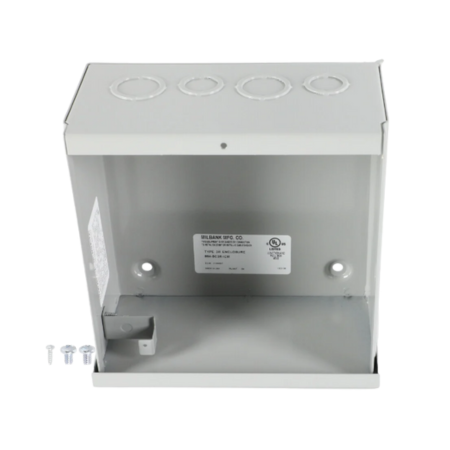

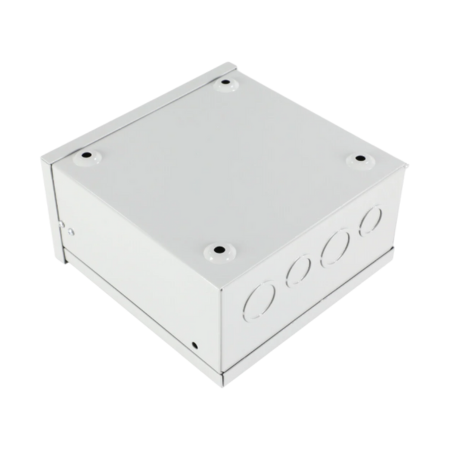

Weather-resistant NEMA-3R enclosure

This component continuously monitors incoming power and protects HVAC systems from over-voltage, under-voltage, rapid short cycling caused by transients, and high-energy power surges.

Designed for outdoor installation, it is ideal for mini-split systems and other condensing units, with easy installation between the service disconnect and the condensing unit.

Voltage Setpoint	200-240 VAC
Line Voltage	180-264 VAC
Frequency	50-60 Hz
Dimensions	8”L x 8”W x 4”H
Accuracy	+/-2%, User Calibration
Contactor Ratings	40A FLA, 240A LRA
Anti-Short Cycle Delay	0.5-10 Minutes
Number of Surge Arresters	0-5 (Required for Operation)
Number of Retries	1-5, Auto
Operating Temperature	-40 to 167°F (-40 to 75°C)
