P70NA-1

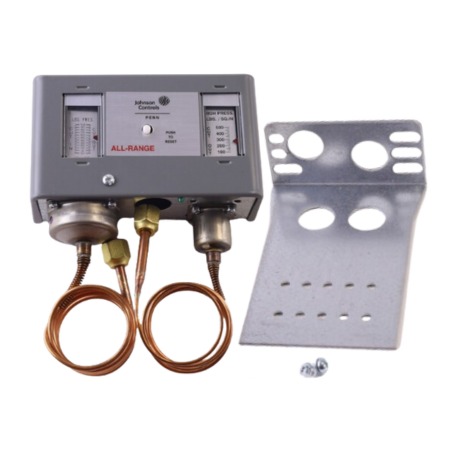

The Johnson Controls P70NA-1 is an SPST dual-pressure control with steel housing.  This device includes the 271-51 universal mounting bracket and a 36” capillary tube with a 1/4" flare nut connection.

The dual-pressure control features manual reset lockouts for low and high-pressure operations.  This control has a 20" w.c. to 100 psi pressure range on low and 100 to 500 psi on high.

The P70NA-1 is compatible with non-corrosive refrigerants such as R12, R22, R134A, R500, and R502.  It is suitable for use in commercial refrigeration and air conditioning applications.
Capillary Tube Length 36"
Connection Size 1/4" Flare Nut
Low Pressure Range 20" w.c. to 100 psi
High Pressure Range 100 to 500 psi
Reset Type Manual Reset
Housing Material Steel
Switch Type SPST
Switch Action Open on Rise; Open on Fall
Enclosure Rating NEMA 1
Pressure Type Differential
