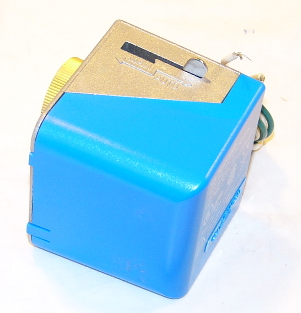

The VA-7010 Series Electric On/Off Actuators provide two-position (open/closed) control and can easily be field mounted with a threaded coupling onto VG5000 Series Forged Brass Valves. Refer to the VG5000 Series Forged Brass Valves 1/2 Through 1 in., Two-Way Normally Closed and Three-Way Product/Technical Bulletin (LIT-977135) for specific information.
A lever at the side of the actuator housing can be used to open the mounted valve manually for servicing.
Low or Line Voltage Model Available: Provides application flexibility
AC Stall Type Motor: Ensures quiet operation
Manual Lever: Allows manual position mode for servicing
Flat Profile Design with Small Side Clearance: Provides mounting close to flat surfaces; saves space
Actuator can be Mounted after Valve Body is Installed: Simplifies installation in confined spaces; allows application flexibility
Actuator can be Rotated after Mounting: Provides easier wiring by locating the wiring conduit entry in any direction
Download Product Information:
Johnson Controls VA-7010 Series Electric On/Off Actuator Tech Sheet
