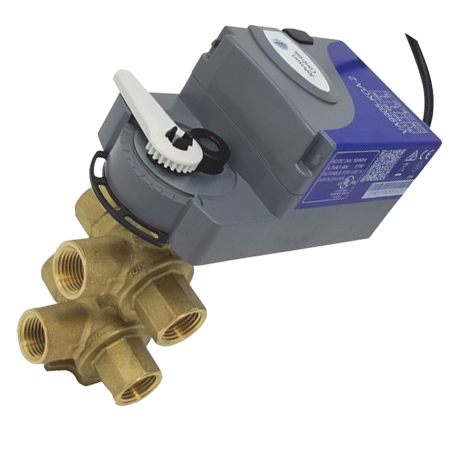

The VG1641BL+905KGA is a six-way ball valve with an actuator that features a brass body and 3/4" NPT connections and operates with a 24V AC/DC supply. It is constructed with a forged brass body and IP54/NEMA 5 protection allowing excellent durability.
The six-way ball valve is ideal for providing precise control over water flow in response to demand. The valve is designed for use in chilled water, hot water, and up to 50% glycol systems, with a temperature range of 41°F to 203°F. The proportional control allows for smooth and precise adjustments.
The VG1641BL+905KGA is easy to install with the valve’s non-spring return rotary actuator powered by a multi-input signal, ensuring compatibility. The VG1641BL six-way ball valve and VA9905-KGA-2 rotary actuator replacement parts are also available.
| Voltage | 24V |
|---|---|
| Connection Size | 3/4" NPT |
| Body Pattern | Six-Way |
| Body Material | Forged Brass |
| Conduit Connection Size | 1/2" NPSM threaded conduit |
| Rotation Rate | 1.5 ° per second |
| Enclosure Rating | IP54/NEMA 5 |
| Ambient Operating Temperature | 32 to 140°F (0 to 60°C) |
| Control Impedance | 100k ohm |
| Approvals | CE-mark, UL-listed, CSA-certified, and RCM Compliant |
Download Product Information:
Johnson Controls VG1641BL+905KGA Six-Way Ball Valve Technical Datasheet
