KMC Controls CTC-1621-113 Direct Acting Two-Pipe Vertical Pneumatic Thermostat

Name: KMC Controls CTC-1621-113 Direct Acting Two-Pipe Vertical Pneumatic Thermostat
Brand: Kmc Controls
SKU: CTC-1621-113
Price: 250.54 USD
Availability: InStock

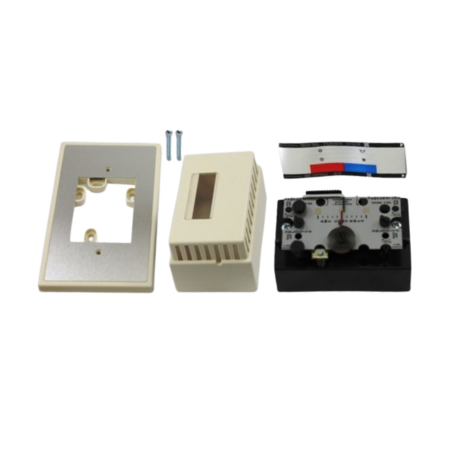

Images for general purposes only. Actual may be different than depicted.

KMC Controls CTC-1621-113 Direct Acting Two-Pipe Vertical Pneumatic Thermostat

SKU: CTC-1621-113

Tariff HS Code: 90321000030

Brand:

Rating:

Quantity	Price	Stock
1 Usually Ships 2 - 4 Weeks	$250.54 /ea	1

Add to Cart

Add to Wishlist

Add to Cart

Add to Wishlist

The KMC Controls CTC-1621-113 is a direct-acting, two-pipe pneumatic thermostat with a Celsius scale.

It has an adjustable set point range of 13 to 29°C and a factory-set, field adjustable 1.7 to 6.7°C throttling range.

This device provides accuracy with the help of sensitive bimetal elements with feedback and a pilot bleed relay.

The CTC-1621-113 is suitable for pneumatic valve and damper actuators in HVAC systems. Mounted vertically.

Material	Black Flame-Retardant Plastic
Setpoint Range	55 to 85°F (13 to 29°C)
Throttling Range	3 to 12°F (1.7 to 6.7°C)
Operating Temperature Range	40 to 120°F (4 to 49°C)
Temperature Scale	Celsius
Action	Direct-Acting
Supply Air Pressure	20 psi (138 kPa)
Maximum Safe Operating Pressure	30 psi (207 kPa)
Mounting	Vertical
Sensor Element	Bimetal

Download Product Information:

KMC Controls CTC-1621/1622 Two-Pipe, Pneumatic, Room Thermostats Datasheet
