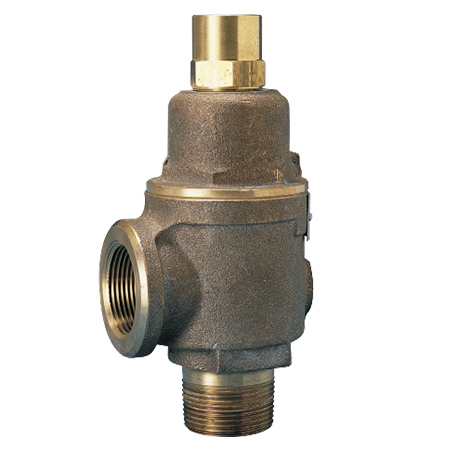

The 0020-D01-MG0150 is a bronze liquid relief valve that has a 3/4" NPT size for both inlet and outlet connections. It has a set pressure of 150 psi and 25 GPM flow rate with a -60 to 406°F(-51 to 208°C) temperature range.
The bronze liquid relief valve is constructed with stainless steel spring for corrosion resistance and durability. The unit features beveled seats lapped, and a spherical pivot between the disc and spring to fix misalignment providing excellent efficiency and performance.
The 0020-D01-MG0150 is easy to install with inlet and outlet connections cast integral with the body to allow effortless checkup and servicing.
| Body Material | Bronze B62 |
|---|---|
| Temperature Range | -60 to 406°F (-51 to 208°C) |
| Pressure Limit | 1 to 300 PSIG |
| Stem Material | Brass B16 |
| O-Ring Material | Teflon |
| Inlet and Outlet Connection Size | 3/4" NPT |
Download Product Information:
Kunkle 0020-D01-MG0150 Bronze Liquid Relief Valve Technical Datasheet
