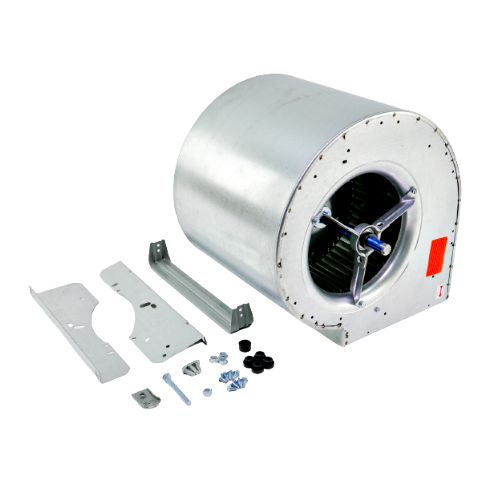

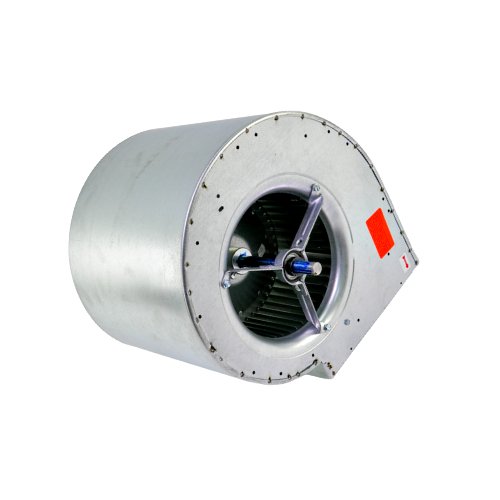

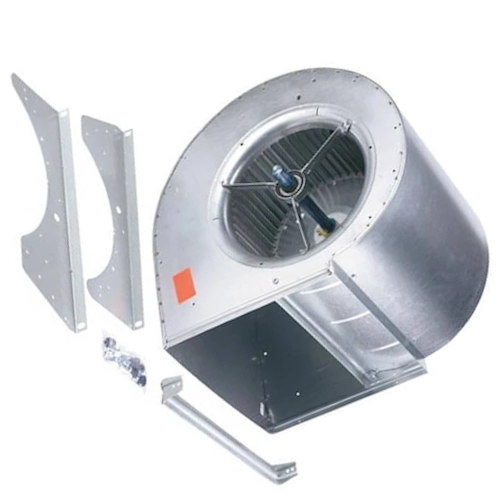

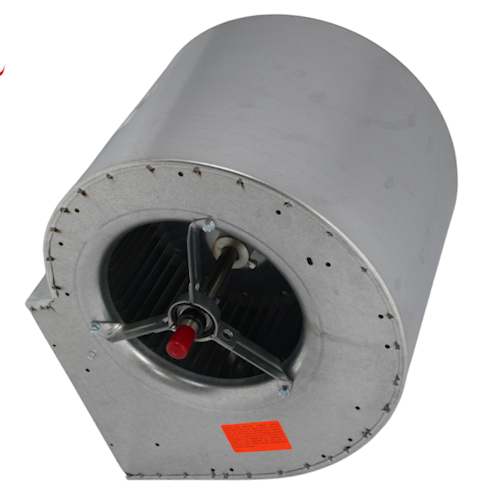

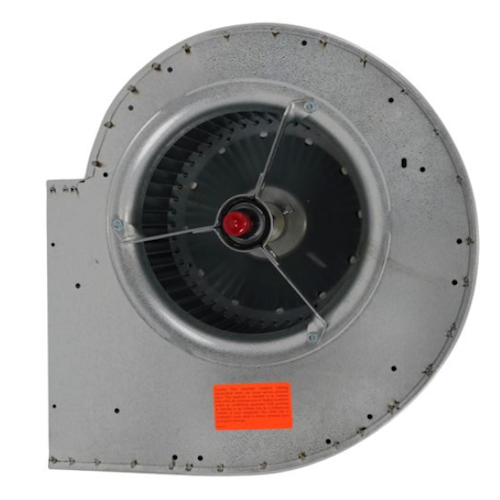

The Lau 0574310003M (A10-10ACE) is a belt drive blower assembly built for residential and light commercial HVAC applications. This clockwise blower assembly is designed with a heavy-gauge steel blower, shaft, sealed bearings, universal housing supports, motor mounting bracket, Vibro-Pads, and mounting hardware for dependable replacement use.
The Lau 0574310003M A10-10ACE is a belt drive blower assembly for residential and light commercial HVAC airflow applications.
The assembly includes a heavy-gauge steel blower with shaft and sealed bearings, universal housing supports, motor mounting bracket, Vibro-Pads, and mounting hardware. Belts, motor, and blower pulleys must be purchased separately.
This model uses a 3/4" shaft size.
No. The motor is not included. Lau states that belts, motor, and blower pulleys are purchased separately.
The maximum blower operating temperature is 150°F. Lau also notes that many motors have a maximum operating temperature of 104°F, depending on the motor selected.
Lau recommends matching the blower position, overall dimensions, outlet dimensions, and performance requirements.
| Shaft Size | 3/4" |
|---|---|
| Rotation | Clockwise |
| Dimension | 13 1/16" x 11 3/8" |
| Material | Galvanized Steel |
| Maximum Blower Operating Temperature | 150°F |
