| H-SERIES SPLIT TAPER BUSHING | ||
| SKU | Bore Size | Keyseat |
| 60331501 | 1 1/8" | 1/4" x 1/8" |
| 60331502 | 1 3/16" | 1/4" x 1/8" |
| 60331503 | 1 3/8" | 5/16" x 5/32" |
| 60331504 | 1/2" | 1/8" x 1/16" |
| 60331505 | 5/8" | 3/16" x 3/32" |
| 60331506 | 3/4" | 3/16" x 3/32" |
| 60331507 | 7/8" | 3/16" x 3/32" |
| 60331508 | 1" | 1/4" x 1/8" |
| 60331509 | 1 1/4" | 1/4" x 1/8" |

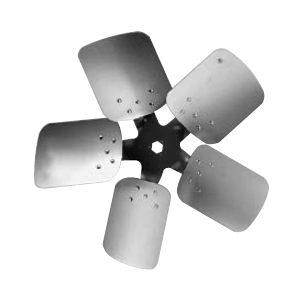

| Lau 60561701 Fan Propeller Performance | ||||||||||
| RPM | STATIC PRESSURE | |||||||||
| 0" WC | .1" WC | .2" WC | .3" WC | .4" WC | ||||||
| CFM | HP | CFM | HP | CFM | HP | CFM | HP | CFM | HP | |
| 825 | 5056 | .284 | 4631 | .314 | 4109 | .354 | 2446 | .354 | 1722 | .401 |
| 1075 | 6577 | .627 | 6240 | .664 | 5908 | .737 | 5525 | .737 | 4966 | .760 |
| 1140 | 6942 | .749 | 6626 | .794 | 6332 | .864 | 6015 | .864 | 5624 | .889 |
| 1625 | 9783 | 2.019 | 9608 | 2.088 | 9249 | 2.156 | 9249 | 2.156 | 9064 | 2.286 |
| Number of Blade | 5 |
|---|---|
| Diameter | 24" |
| Pitch Angle | 27-degree |
| Rotation | Clockwise |
| Material | Aluminum |
