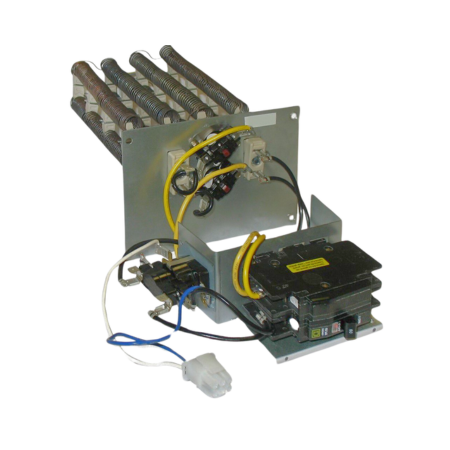

The Lennox 19F21 (ECB29-20CB-10P) is a single-phase electric heat element with a circuit breaker for overload and short-circuit protection. It delivers a 20 kW heating capacity and operates at 208-230 VAC and 60 Hz. ETL listed for safety compliance.
Constructed with a heavy-gauge galvanized steel control box and access cover, this unit ensures durability while initiating and terminating blower operation for efficient heating performance.
The 19F21 is a direct replacement for the 11L31, 13T92, 11L3101, and 13T9201 heat elements. It is field-installable within the unit cabinet and designed for use with CBA27UHE Series air handlers.
| Product Series | ECB29 Series |
|---|---|
| Compatible Series | CBA27UHE Series |
| Application | Air Handlers |
| Heating Capacity` | 20.0 kW |
| Voltage | 208-230 VAC |
| Number of Phase | Single-Phase |
| Circuit Breaker | 60 Amp |
| Frequency | 60 Hz |
Download Product Information:
