Littelfuse 460 Voltage Monitoring Relay 3-Phase 190-480Vac

Littelfuse 460 Voltage Monitoring Relay 3-Phase 190-480Vac
Images for general purposes only. Actual may be different than depicted.

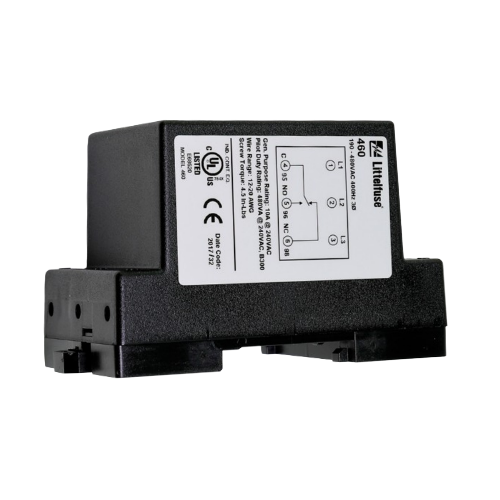

Littelfuse 460 Voltage Monitoring Relay 3-Phase 190-480Vac Genuine Littelfuse 460 Voltage Monitoring Protection Relay

Littelfuse 460 Voltage Monitoring Relay 3-Phase 190-480Vac

SKU: 460
Rating:
Quantity Price Stock
35
Usually Ships 1 - 2 Weeks
$131.12     /ea
35
0
$0.00
0
$0.00
0
460
The Littelfuse 460 is a voltage monitoring relay that automatically senses line voltage.  It has adjustable 1-30 second trip delay, 1-500 second restart delay, and 2-8% voltage unbalance trip point.

The 460 is a 3-phase voltage monitor that protects 190-480VAC or 475-600V, 50/60Hz motors regardless of size. The product provides a user selectable nominal voltage setpoint and the voltage monitor automatically senses line voltage. This unique microcontroller-based voltage and phase-sensing device constantly monitors the 3-phase voltages to detect harmful power line conditions such as low, high, and unbalanced voltage, loss of any phase, and phase reversal. When a harmful condition is detected, the MotorSaver® output relay is deactivated after a specified trip delay. The output relay reactivates after power line conditions return to an acceptable level for a specified amount of time (restart delay). The trip and restart delays prevent nuisance tripping due to rapidly fluctuating power line conditions.

All 460 models feature adjustable 1-30 second trip delay, 1-500 second restart delay, 2-8% voltage unbalance trip point, and one form C contact except where noted below.
Voltage 190-480Vac
