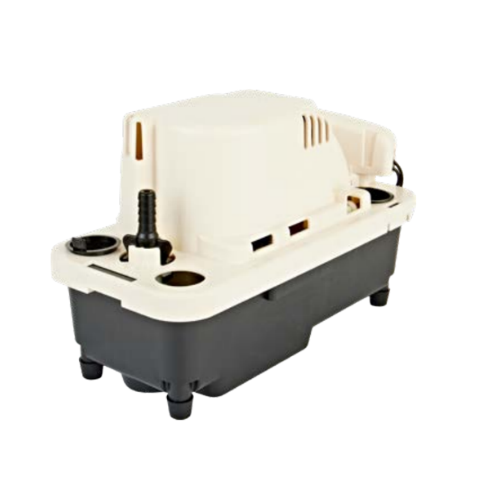

Little Giant 554631 Condensate Removal Pump VCMA-20ULS-PRO 230V 1/30 HP with 6ft Cord

Little Giant 554631 Condensate Removal Pump VCMA-20ULS-PRO 230V 1/30 HP with 6ft Cord
Images for general purposes only. Actual may be different than depicted.
Little Giant 554631 Condensate Removal Pump VCMA-20ULS-PRO 230V 1/30 HP with 6ft Cord

Little Giant 554631 Condensate Removal Pump VCMA-20ULS-PRO 230V 1/30 HP with 6ft Cord

SKU: 554631
Rating:
Quantity Price Stock
1
Usually Ships 1 - 2 Weeks
$89.59     /ea
1
Add to Cart
Add to Wishlist
Add to Cart
Add to Wishlist
0
$0.00
0
$0.00
0
554631
Little Giant 554631 Condensate Removal Pump VCMA-20ULS-PRO 230V 1/30 HP with 6ft Cord

The 554631 pump effectively delivers high-efficiency condensate removal from air conditioners, gas furnaces, and condensing boilers.  This comes with a safety switch.

Features:
  • External test/run lever
  • Slim footprint
  • Vertical centrifugal pump design
  • Stainless steel motor shaft
  • Automatic start and stop operation
  • Galvanized steel “quick install” wall mount bracket
  • Some models equipped with external, float activated switch for automatic high-level water detection (overflow detection switch)
  • For models with overflow detection switch: dual function NO and NC operation (set to NO from factory for equipment shut down connection)
  • Models equipped with overflow detection switch include two 5" switch lead wires
  • 3/8" O.D. barbed ¼-turn quick release, locking discharge adapter with built-in check valve
  • Rubber feet for vibration/noise dampening
  • “Anti-sweat” tank sleeve included on select models and available separately for all others
  • 3 - 1-1/8" diameter inlet openings, two fitted with removable cap plug (3 + 1 inlet openings for models without overflow detection switch)
  • Recessed tank sump
  • Oil resistant tank and check valve
  • Thermally protected, fan cooled motor
  • Maximum water temperature: 140 °F
  • 6', 3-conductor cable with grounded 3-prong plug
  • Some models include 20' x 3/8" I.D. vinyl discharge tubing
Horsepower 1/30hp
Input Voltage 230V
Hertz 60Hz
Amperage 0.7/0.6 amp
Watts 75W
Discharge Size 3/8" (9.5 mm)
Check Valve 3/8" (9.5 mm)
Pressure 8.6 psi
Cord 6' (1.8 m)
Approval CSA
