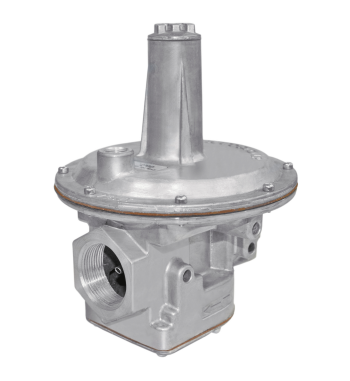

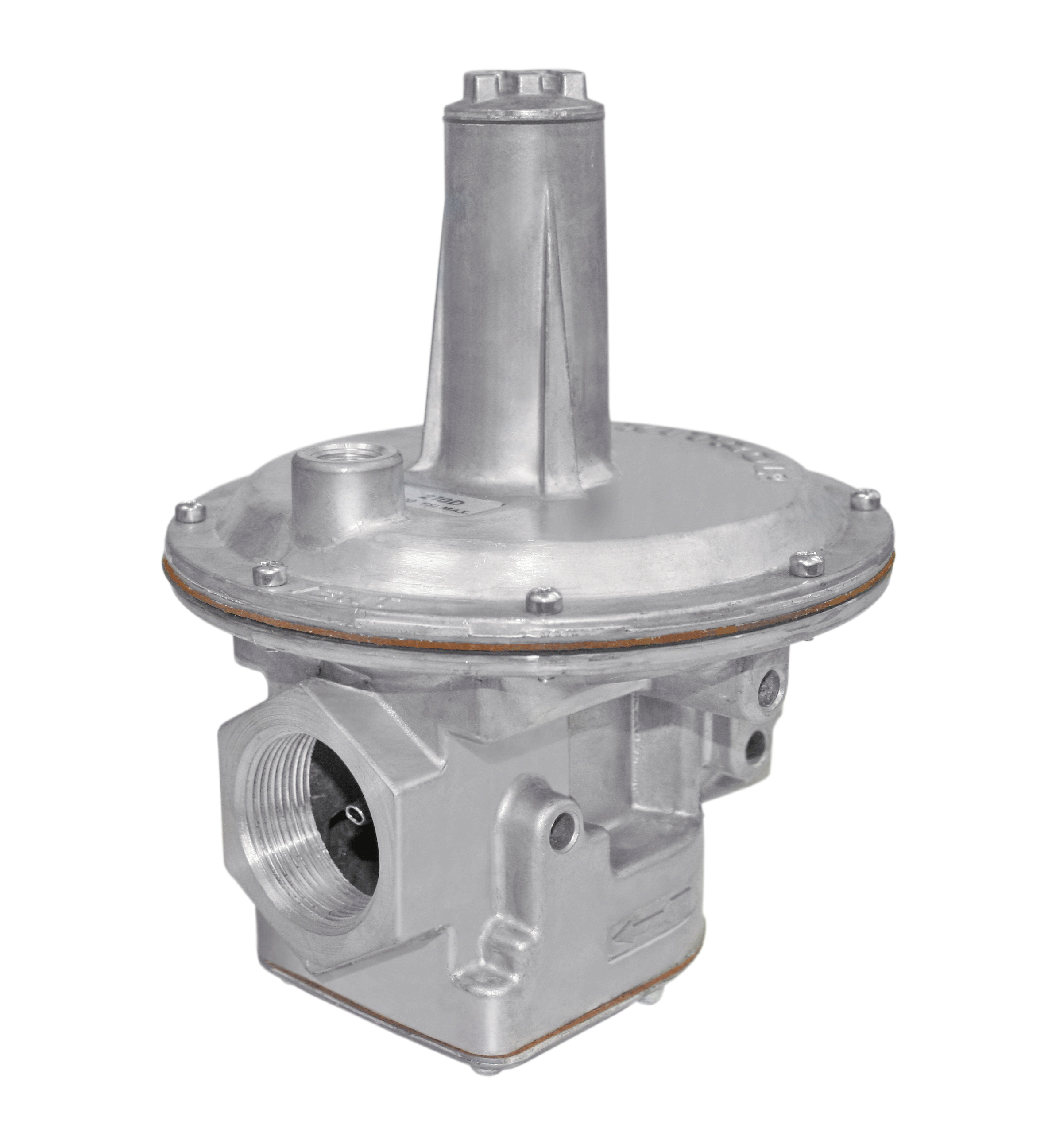

Maxitrol 210GZ-2-1/2 Zero Governor Regulator 2-1/2"

Maxitrol 210GZ-2-1/2 Zero Governor Regulator 2-1/2"
Images for general purposes only. Actual may be different than depicted.
Maxitrol 210GZ-2-1/2 Zero Governor Regulator 2-1/2"

Maxitrol 210GZ-2-1/2 Zero Governor Regulator 2-1/2"

SKU: 210GZ-2 1/2
Rating:
Quantity Price Stock
1
Usually Ships 2-3 Weeks
$1,579.61     /ea
1
0
$0.00
0
$0.00
0
210GZ-2 1/2

The 210 series is a lock-up type regulator and complies with codes using this specification. The 210 series has been designed for maximum control function in an easy to use package. The series is intended for use with gas-fired boilers, steam generators, industrial furnaces, ovens, and similar high demand equipment. When selecting pipe size, make sure regulators are not more than one size smaller or larger than manifold pipe size. Gas flow must be oriented to arrow on the bottom casting. At exposures to maximum emergency levels, the regulator will suffer no internal damage, but it may provide accurate regulation. See Maxitrol's "Spring Chart" under Manuals for complete selection of spring ranges on all models. Convenient tap locations are provided for downstream sensing, cross connections, and differential control. Four locations can be tapped and plugged for measuring pressure. The 210D, E, and G may be ordered with remote sensing. The internal sensing tube is omitted and external sensing taps are provided.

Specifications:

  • Pipe Sizes: RZ Models: 3/8” to 1” threaded connections with NPT or ISO7-1 threads. 210Z Models: 1” to 3” threaded connections with NPT or ISO7-1 threads.4” 125 lb. flange (210JZ only).
  • Housing Material: R400Z, R500Z, R600Z, 210DZ, 210EZ, 210GZ, 210JZ: aluminum.
  • Mounting: R400Z, 210DZ, 210EZ, 210GZ, 210JZ mount in an upright position only. R500Z, R600Z suitable for multi-positional mounting. If ball check vent limiting device is installed, mount in an upright position only.
    NOTE: All Maxitrol gas pressure regulators should be installed and operated in accordance with Maxitrol Safety Warning Instructions (see GPR_MI_EN.ES or GPR_CSA_MI_EN.FR)
  • Certifications: R400Z, R500Z, 210DZ, 210EZ, 210GZ: ANSI Z21.18/CSA 6.3 Gas Appliance Pressure Regulators.
  • Gas Types: Suitable for natural, manufactured, mixed gases, liquefied petroleum gases, and LP gas-air mixtures.
  • Maximum Inlet Pressure: CSA Certified: R400Z, R500Z: 1/2 psi (3.4 kPa); 210DZ, 210EZ, 210GZ: 5 psi (34.5 kPa)
  • Maxitrol Tested: R600Z: 1/2 psi (3.4 kPa); 210JZ: 5 psi (34.5)
  • Emergency Exposure Limits: R400Z, R500Z, R600Z: 2 psi (13.8 kPa) 210DZ, 210EZ, 210GZ, 210JZ: 25 psi (172 kPa)
  • Ambient Temperature Ranges: R400Z, R500Z, R600Z: -40° to 205°F (-40° to 96°C) 210DZ, 210EZ, 210GZ, 210JZ: -40° to 200°F (-40° to 93°C)
  • Sensing Taps: 210Z Models have convenient tap locations available for downstream sensing, cross connections, and differential control. Four locations can be tapped and plugged for measuring pressure.
  • Remote Sensing: 210DZ, 210EZ, 210GZ models may be ordered with remote sensing. The internal sensingtube is omitted and external sensing taps are provided. Add suffix letter “R” to model number when ordering.
  • Minimum Regulation: R400Z: Suitable for pilot flow applications. (Circle P) (0.15 CFH NG), (Delta P (0.50 CFH NG). R500Z, R600Z: 10 CFH.

Download Product Information:

Maxitrol 210GZ-2-1/2 Catalogue Page
