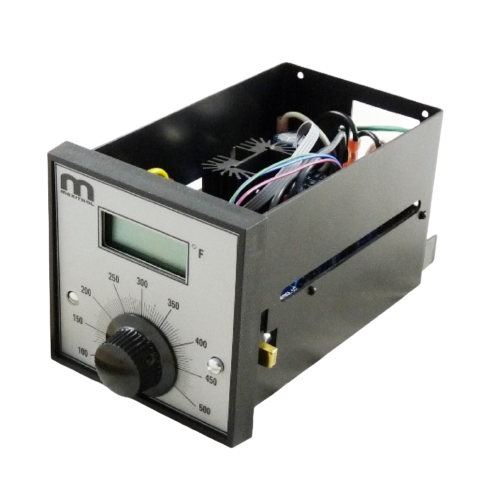

Maxitrol AD1094C-1050 is an Amplifier & Selector with LCD Display used for Series 94 self-contained Selectra systems. The selector has a temperature range of 100° to 500° F.
The Maxitrol Series 94 Selectra systems do provide precise, stable gas-fired temperatures and are used for direct-fired burners. This system consists of Modulator Regulator Valves for gas flow control. The valve is applicable in all fuel gases and can have a capacity of up to 30,000,000 Btu/h. They can be utilized in either a remote system or a self-contained system with configuration components such as amplifier and selector. For a self-contained system, it composes of an amplifier, selector, temperature sensors, mixing tubes, and modulator-modulator/regulator valves.
| Series 94 Self-Contained Selectra System Components | ||||
| Amplifier/Selector | Description | Temperature Sensor | Mixing Tubes | Modular Valve |
| AD1094C | Single Dial - Relay to Operate Automatic Valve | TS394-3B48FQ | MT1-9 or 2-9 MT1-12 or 2-12 MT1-23 or 2-23 MT1-28 or 2-28 MT-57 |
M411 M420 M451 M511 M520 M551 M611 M620 M651 MR212D, E, G & J |
| Temperature Range | 100-500 F |
|---|---|
| Approvals | CSA |
