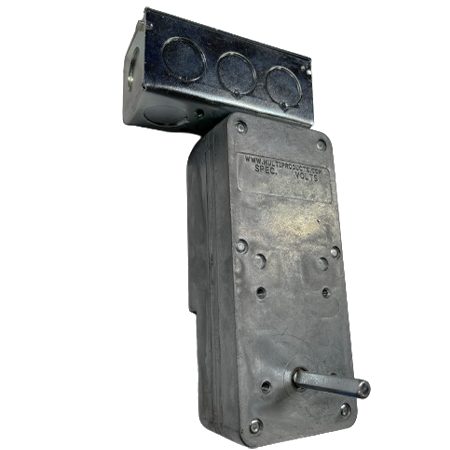

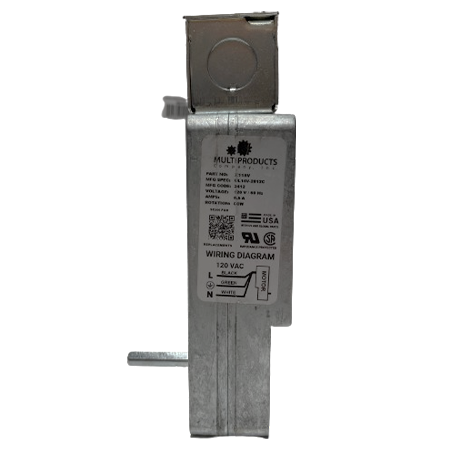

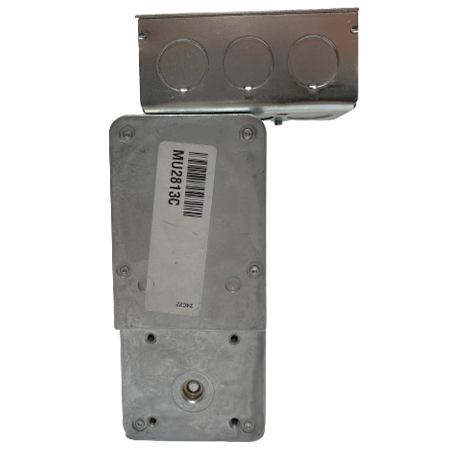

The 2813C (X115V) is a single-phase actuator motor that has a power rating of 115V, 0.5A, and 60 Hz frequency. The motor rotates in counterclockwise directions at a speed of 2.2 RPM with a 50 in/lbs minimum stall torque. UL-recognized and CSA-certified.
What is an actuator motor?
An actuator is a device that generates a rotating motion to control a system by converting electrical energy into mechanical movement.
| Rotation Speed | 2.2 RPM |
|---|---|
| Maximum Stall Current | 0.7A |
| Frequency | 60 Hz |
| Voltage | 115V |
| Minimum Stall Torque | 50 in/lbs |
| Rotation | Counterclockwise |
| Approvals | UL-recognized and CSA-certified |
Download Product Information:
Multi Products 2813C Actuator Motor Tb2000 Specification Sheet
