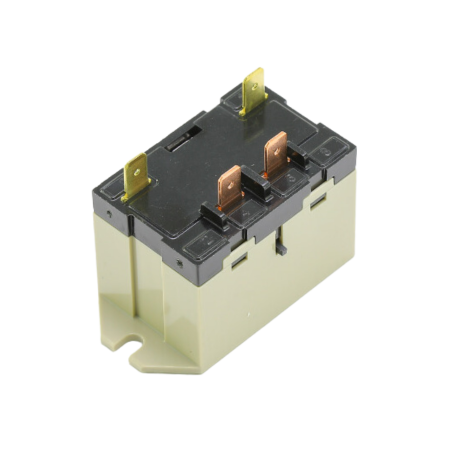

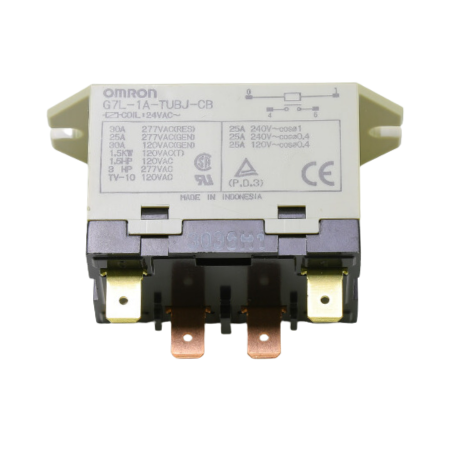

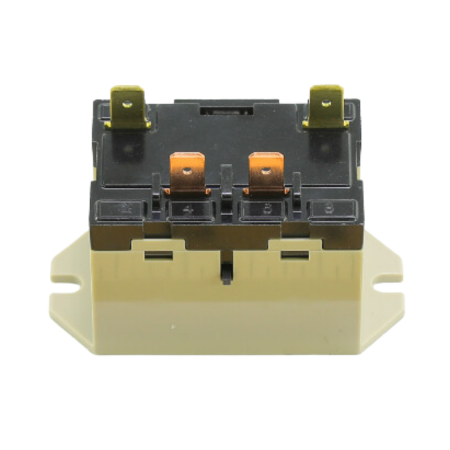

Omron G7L-1A-TUBJ-CBAC24 High-Capacity Power Relay SPST-NO 24V 30A

Omron G7L-1A-TUBJ-CBAC24 High-Capacity Power Relay SPST-NO 24V 30A
Images for general purposes only. Actual may be different than depicted.
Omron G7L-1A-TUBJ-CBAC24 High-Capacity Power Relay SPST-NO 24V 30A Omron G7L-1A-TUBJ-CBAC24 Power Relay SPST-NO Omron G7L-1A-TUBJ-CBAC24 Power Relay SPST-NO 24V 30A Omron G7L-1A-TUBJ-CBAC24 Power Relay SPST-NO Illustration

Omron G7L-1A-TUBJ-CBAC24 High-Capacity Power Relay SPST-NO 24V 30A

SKU: G7L-1A-TUBJ-CBAC24
Rating:
Quantity Price Stock
9
Usually Ships 2 - 4 Weeks
$35.58     /ea
9

The G7L-1A-TUBJ-CBAC24 found on this page, is a direct replacement for the following obsolete item(s):

Obsolete Product SKU
Honeywell 50035445-014 Compressor Relay SPST 24V 30A 50035445-014

Brand Honeywell
Honeywell 50035445-014 Compressor Relay SPST 24V 30A
0
$0.00
0
$0.00
0
G7L-1A-TUBJ-CBAC24
The G7L-1A-TUBJ-CBAC24 is a high-capacity SPST-NO power relay that operates at 25V and 30A power supply.   UL and CSA Listed.

The power relay is made of flame-resistant materials.  It features a quick-connect terminal, test button, and upper bracket mounting.

The G7L-1A-TUBJ-CBAC24 is a direct replacement for Honeywell 50035445-014.  Compatible with momentary voltage drops.
Contact Rating 30A
Product Type Power Relay
Contact Form SPST-NO
Classification Upper Bracket Mounting
Relay Terminal Quick Connect
Contact Material Silver Alloy
Approvals UL and CSA Listed
Coil Type Non-Latching
Mounting Type Chassis Mount
Voltage 24V

Download Product Information:

Omron G7L Series Power Relay Data Sheet
