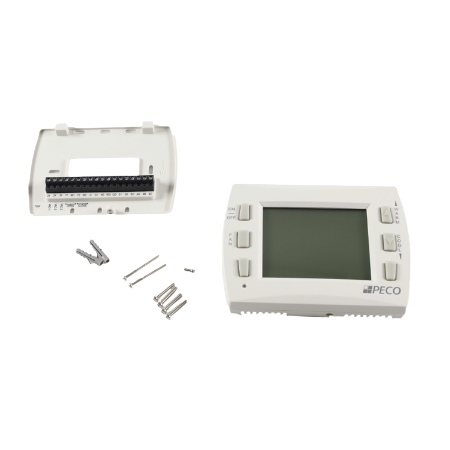

The T8168-1 is a Digital Thermostat that has a temperature control range of 50° to 90° F (10° to 32° C), a differential of 1° F (0.5° C), and operates on 24 VAC (20-30 VAC) 50/60 Hz (+/- 10%) input power.
The digital thermostat delivers precision digital outputs for valves, dampers, relays, and fans, ensuring accurate temperature control for various HVAC systems. Its easy single set point technology provides simple and precise control, making it highly versatile for applications like fan coil systems, conventional HVAC setups, and proportional control.
The T8168-1 is easy to install with a user-friendly configuration menu that allows for quick system setup. It supports a range of mounting options, accommodating 2 Heat/2 Cool ON/OFF, 1 Heat/1 Cool TWF, and 1 Heat/1 Cool 0-10 VDC configurations, along with fan control for one 0-10 VDC fan or up to three 24 VAC fan speeds.
| Temperature Control Range | 50 to 90°F (10 to 32°C) |
|---|---|
| Differential Temperature | 1°F (0.5°C) |
| Frequency | 50/60 Hz |
| Operating Temperature Range | 0 to 120°F (-18 to 49°C) |
| Operating Humidity | 5% to 95% RH, non-condensing |
| Terminal Connections | 14-24 AWG stranded or solid wire |
| Proportional Output Band Width | 2°F (1°C) |
| Proportional Stroke Time Default | 2 Minutes (Configurable) |
| Input Power | 24 VAC (20-30 VAC) |
