Redington 7111 Electric Totalizing Counter

Name: Redington 7111 Electric Totalizing Counter
Brand: Redington
SKU: 7111
Price: 61.46 USD
Availability: OutOfStock

Images for general purposes only. Actual may be different than depicted.

Redington 7111 Electric Totalizing Counter

SKU: 7111

Brand:

Rating:

Quantity	Price	Stock
Usually Ships 1 - 2 Weeks Usually Ships 1 - 2 Weeks	$61.46 /ea	Usually Ships 1 - 2 Weeks

Add to Cart

Add to Wishlist

The 7111 found on this page, is a direct replacement for the following obsolete item(s):

Obsolete Product	SKU
Redington 5320-0100 Hour Meter Reset DC	5320-0100 Brand Redington

Add to Cart

Add to Wishlist

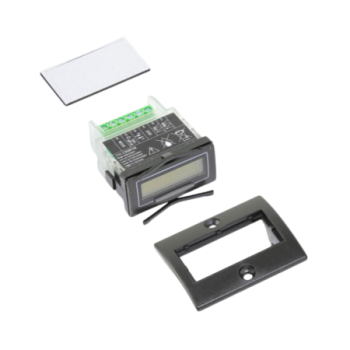

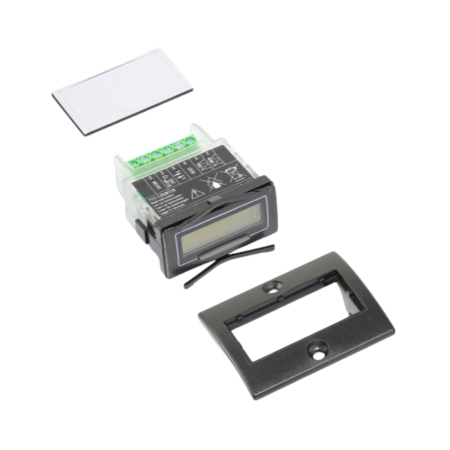

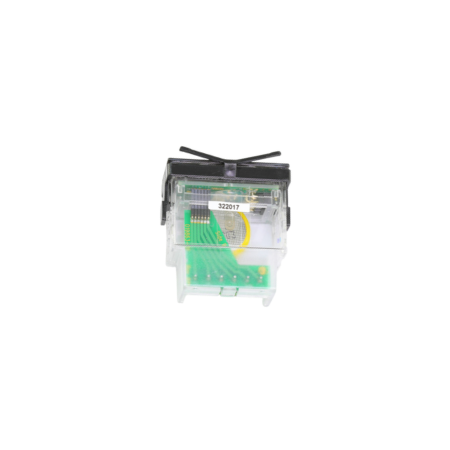

The Redington 7111 is an electric totalizing counter made of polycarbonate material. It has an LCD that displays up to 8 digits with 9mm characters and includes a backlight.

The electric totalizing counter displays the total number of cycles applied to the input and counts pulses up to 10kHz frequency. This device features an external reset input.

The 7111 is suitable for various HVAC applications and it replaces Redington 5320-0100.

Display	8 Digit LCD, 9mm Characters
Storage Temperature	-20 to 60°C
Operating Temperature	-10 to 60°C
Material	Polycarbonate
Environmental Protection	IP65
Count Range	99999999 Display Rollover to 0
Battery Life	10 Years
Direction Input	Add=Logic 1, Subtract=Logic 0 (0V)
Reset Input	Negative Edge Triggered, 0.7V Threshold, 15mS Minimum Pulse Length
Count Input	10kHz Maximum, Negative Edge Triggered, 0.7V Threshold, 50µS Minimum Pulse Length

Download Product Information:

Redington 7111 Counter Datasheet

Redington 7111 & 7511 Counter Instruction Manual
