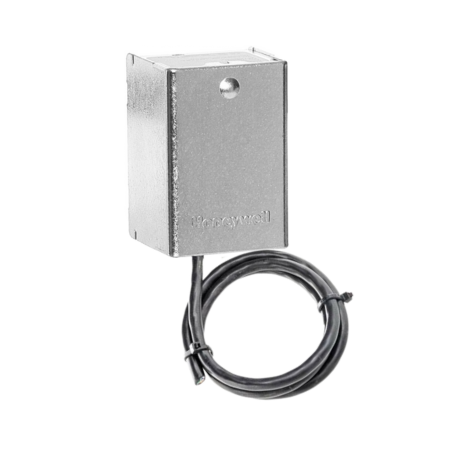

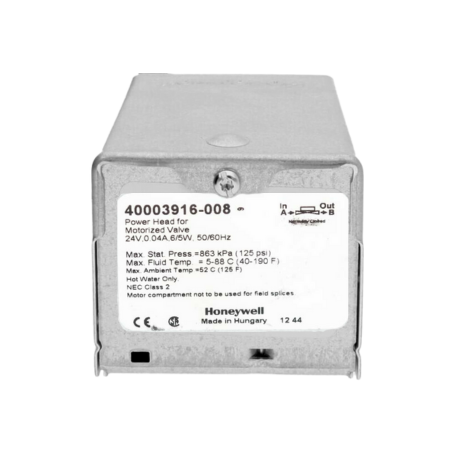

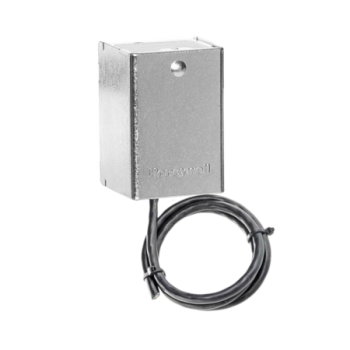

The Honeywell Resideo 40003916-008 is a powerhead actuator assembly operating at 24V and 50/60 Hz power supply.
The assembly includes a motor, housing, 2 (two) mounting screws, and a 1m (39.37") lead wire. CSA Listed.

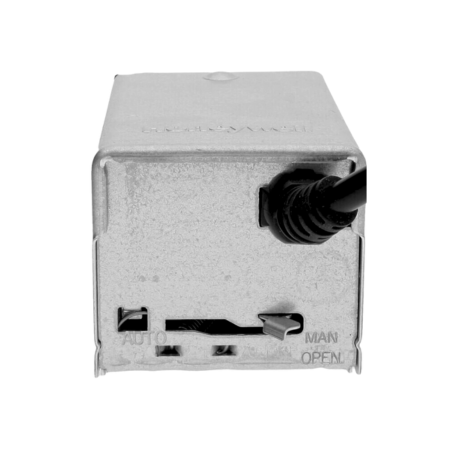

The powerhead actuator features a manual opening lever that helps open the valve without an electrical power.
The 40003916-008 is compatible with the following V8044C Series zone valve for hydronic heating applications:
| Frequency | 50/60 Hz |
|---|---|
| Product Type | Replacement Actuator |
| Color | Metallic |
| Application | V8044C Series Zone Valve |
| Valve Type | Zone Valve |
| Voltage | 24V |
| Electrical Connection | 1m (39.37") Lead Wire |
| Maximum Static Pressure | 863 kPa (125 psi) |
| Maximum Fluid Temperature | 5 to 88°C (40 to 190°F) |
| Maximum Ambient Temperature | 52°C (125°F) |
