Resideo AM101R-UT-1 Mixing Valve 3/4" Union NPT

Name: Resideo AM101R-UT-1 Mixing Valve 3/4" Union NPT
Brand: Honeywell Resideo
SKU: AM101R-UT-1
Price: 150.08 USD
Availability: InStock

Images for general purposes only. Actual may be different than depicted.

Resideo AM101R-UT-1 Mixing Valve 3/4" Union NPT

SKU: AM101R-UT-1

UPC: 8526782523

Brand:

Rating:

Quantity	Price	Stock
9 Usually Ships 1 - 2 Weeks	$150.08 /ea	9

Buy in Bulk & Save

Quantity	Price
4+	$142.57 /ea

Add to Cart

Add to Wishlist

Add to Cart

Add to Wishlist

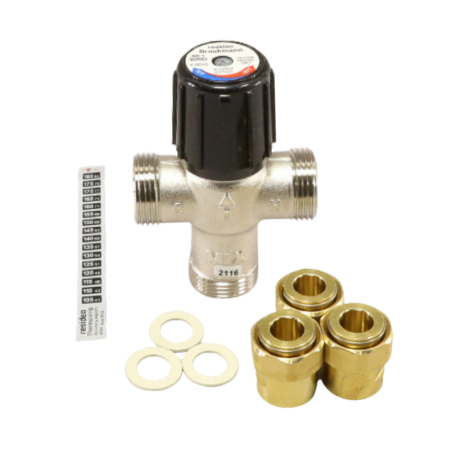

The Honeywell Resideo AM101R-UT-1 is a mixing valve with a 3/4" Union NPT that can hold 150 psi maximum pressure and 3.9 Cv flow capacity. CSA Listed.

Features:

Lockable Handwheel
Straight Through Design (Hot and Cold at the Same Level)
Proportional Valve (Simultaneous Control of Hot and Cold Water)
Constant Water Temperature under Different Operating Conditions
Teflon Coated Nickel Plated Brass Construction
Easy Maintenance and Element Replacement

The AM-1 Series is suitable for heat pumps, automatic faucets, domestic water, space heating, radiant floor heating, photo processing, combo systems, and industrial applications.

Application	Point of Source
Connection Size	3/4" Union NPT
Approval	CSA Listed
Minimum Flow Rate	0.5 gpm
Body Material	Teflon Coated Nickel Plated Brass
Capacity	3.9 Cv
Maximum Operating Pressure	150 psi (1034 kPa)
O-ring Material	EPDM Rubber
Operating Temperature Range	70 to 180°F (21 to 82°C)
Valve Type	Mixing Valve

Download Product Information:

Resideo AM-1 Series Mixing Valve Data Sheet

Resideo AM-1 Series Mixing Valve Installation Guide
