Resideo AM102R-US-1 Mixing Valve 1” Union Sweat – Heating Only

Name: Resideo AM102R-US-1 Mixing Valve 1” Union Sweat – Heating Only
Brand: Honeywell Resideo
SKU: AM102R-US-1
Price: 157.06 USD
Availability: InStock

Images for general purposes only. Actual may be different than depicted.

Resideo AM102R-US-1 Mixing Valve 1” Union Sweat – Heating Only

SKU: AM102R-US-1

Brand:

Rating:

Quantity	Price	Stock
18 Usually Ships 1 - 2 Weeks	$157.06 /ea	18

Buy in Bulk & Save

Quantity	Price
4+	$149.21 /ea

Add to Cart

Add to Wishlist

Add to Cart

Add to Wishlist

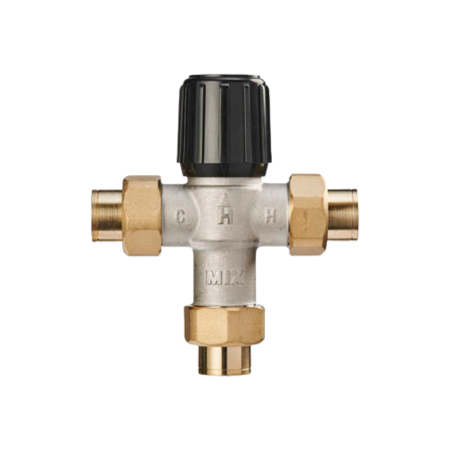

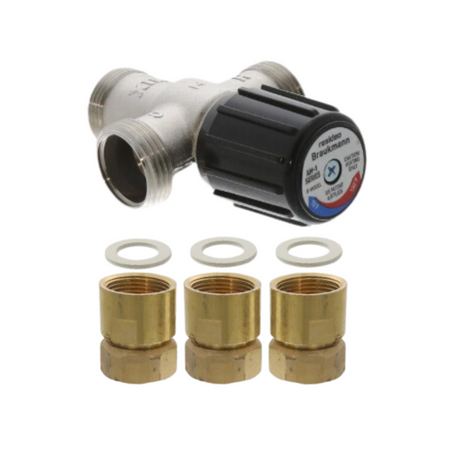

The Resideo AM102R-US-1 is a mixing valve with a 1” Union Sweat connection that operates at 70 to 180°F temperature range.

Features:

Straight Through (Hot and Cold at the Same Level)
Teflon Coated Nickel Plated Brass Body and EPDM O-rings
Constant Water Temperature under Changing Operating Conditions
Proportional Valve (Simultaneous Control of Hot and Cold Water)
Lockable Handwheel for Accurate Temperature Control
Easy Maintenance and Element Replacement

The AM-1 Series is suitable for heating applications such as radiant and boiler systems (not intended for potable water usage).

Operating Temperature Range	70 to 180°F (21 to 82°C)
Maximum Operating Pressure	150 psi (1034 kPa)
Capacity	3.9 Cv
Approval	CSA Certified
Connection Size	1" Union Sweat
Minimum Flow Rate	0.5 gpm
Application	Heating Only
Maximum Flow Rate	16 gpm
Body Material	Teflon Coated Nickle-Plated Brass
O-Rings Material	EPDM Rubber

Download Product Information:

Resideo AM-1 Series Mixing Valve Data Sheet

Resideo AM-1 Series Mixing Valve Installation Guide
