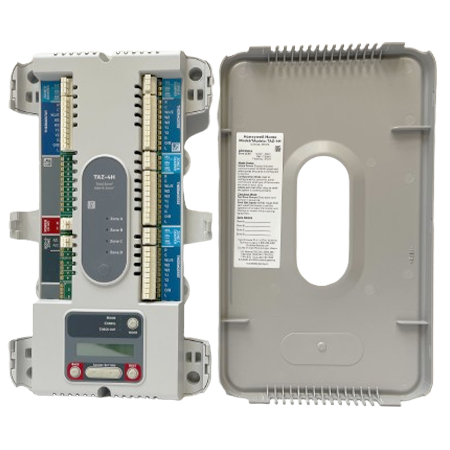

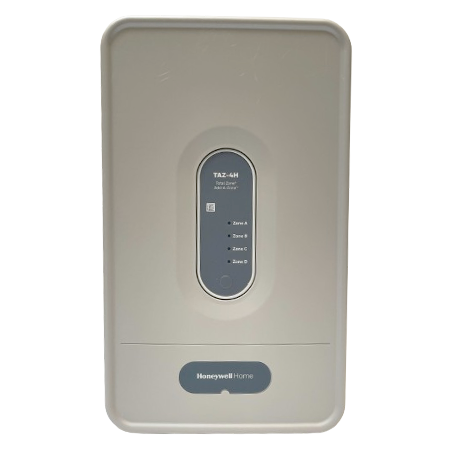

The TAZ-4H is an Add-A-Zone panel that operates at 24V, 8.5VA, and 50/60 Hz. It has a 5% to 90% RH non-condensing operating humidity range, 40° to 74°C ambient temperature, and up to 32 maximum number of zones.
The Add-A-Zone panel is suitable for HZ432 zone panel application when 4 zones are needed. The unit features indication for damper state with common-sense LEDs and can be controlled with two or three wire dampers with open or closed logic.
The TAZ-4H is simple to set up with intuitive guides and a digital display that uses real language to provide quick & easy-to-follow installation.
| Number of Zones | 4 Zone per Panel up to 32 Zones |
|---|---|
| Operating Humidity Range | 5% to 90% RH non-condensing |
| Frequency | 50/60 Hz |
| Voltage | 24V |
| Ambient Temperature Range | -40 to 74°C (-40 to 165°F) |
| Compatible Series | HZ432 Series |
| Application | Zoning |
| Color | Gray |
| Compatible Sensor | Discharge Air Temperature Sensor |
| Mounting | Wall Mount |
