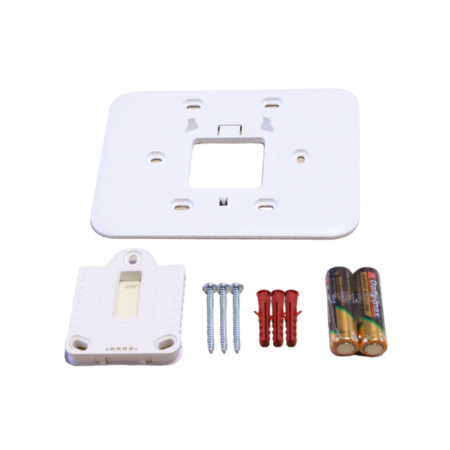

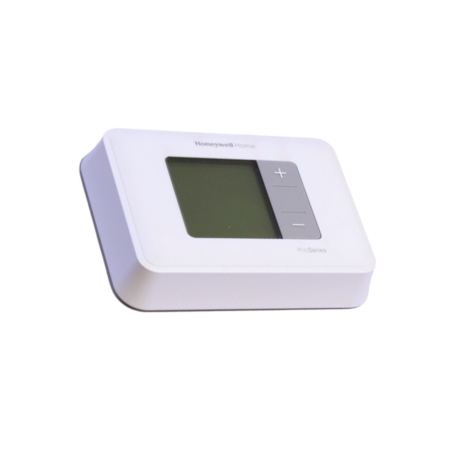

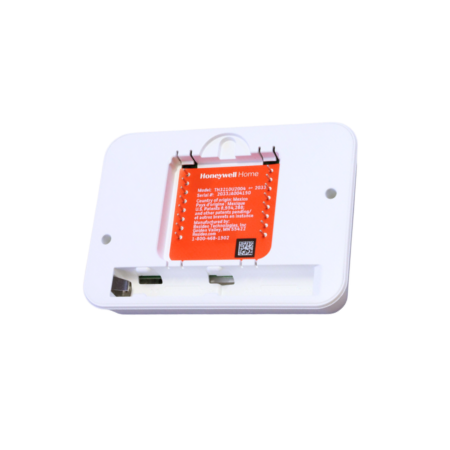

The Honeywell Resideo TH3210U2004 is a T3 Pro non-programmable thermostat assembly that includes a UWP mounting system, installation adapter (J-box adapter), AA batteries, screws, and anchors. It has an overall dimension of 3.86” H x 5.36” W x 1.08” D (98mm x 136mm x 27.4mm).

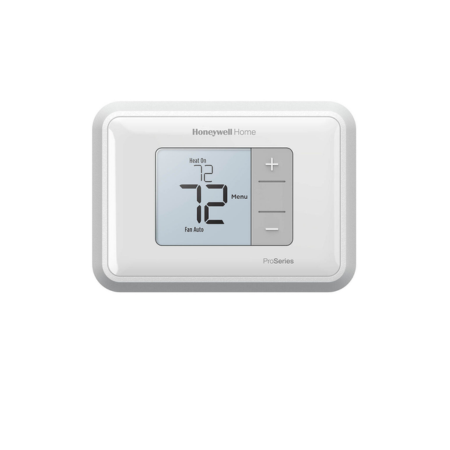

The thermostat is battery-powered or hardwired operating at 24V and 50/60 Hz power ratings. This device features an easy-to-read backlit digital display, easy-to-use up/down vertical buttons for setting selection, and a rectangular footprint that helps cover up old thermostat wall marks.
The TH3210U2004 is suitable for a 2 Heat/1 Cool heat pump system with auxiliary heat, hot water, or steam. This component displays “Cool On” when the temperature is between 50 to 99°F (10 to 37°C) and displays “Heat On” when set between 32 to 90°F (0 to 32°C).
| Accuracy | ±1 F (± 0.5 C) |
|---|---|
| Programmability | Non-Programmable |
| Mounting Position | Horizontal |
| Power Method | Battery-Powered or Hardwired |
| Changeover | Auto or Manual |
| Power Rating | 24V; 50/60 Hz; 20 to 30 VAC |
| Stages | 1Heat/1Cool; 2Heat/1Cool |
| Setting Temperature Range | Heat: 32 to 90°F (0 to 32°C); Cool: 50 to 99°F (10 to 37°C) |
| Operating Humidity Range | 5 to 90% RH, Non-Condensing |
Download Product Information:
Honeywell Resideo T3 Pro Series Thermostats Installation Guide - French
Honeywell Resideo T3 Pro Series Thermostat Brochure
Honeywell Resideo T3 Pro Series Thermostats Installation Guide - English
Honeywell Resideo T3 Pro Series Thermostats Submittal Sheet
Honeywell Resideo T3 Pro Series Thermostats Installation Guide - Spanish
