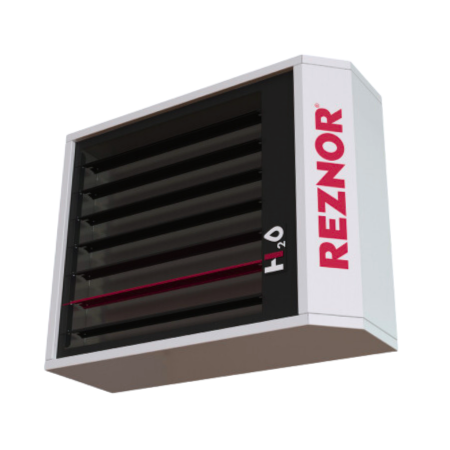

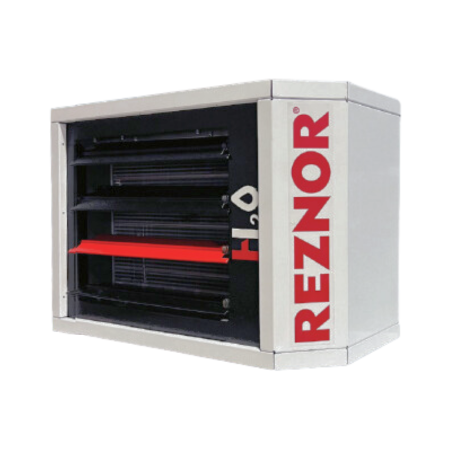

The Reznor UWS0001007 (UWS-83/104) is a single-phase hydronic unit heater operating at 3.4A, 115, and 60 Hz electrical supply.
Features
This device provides space heating using hot water at 40 to 180°F (4.4 to 82°C). It can handle 150 psi maximum pressure and 83,000 to 104,000 btu/hr heating capacity.
The UWS0001007 directly replaces the WS-140/175 hydronic heater. Suitable for use with boiler or hot water heat pump system, mounted in the ceiling.
| Operating Temperature Range | 250°F (121°C) |
|---|---|
| Operating Pressure Range | 150 psi (10 bar [1034 kPa]) |
| Existing Water Temperature | 120°F (49°C) |
| Entering Water Temperature | 140°F (60°C) |
| Number of Phase | Single-Phase |
| Flow Rate | 2054 cfm |
| Electrical Rating | 3.4A, 115V, 60 Hz |
| Water Temperature Range | 40 to 180°F (4.4 to 82°C) |
| Heating Capacity | 83,000 to 104,000 btu/hr |
| Connection Size | 1-1/4” |
