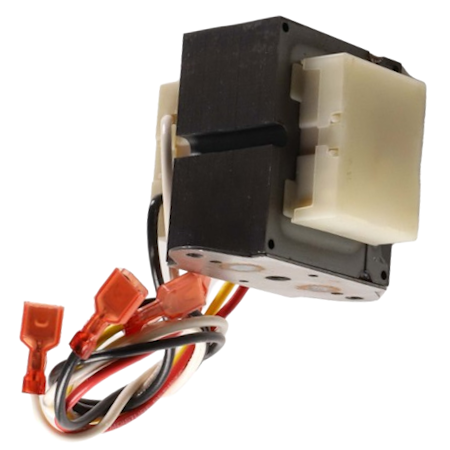

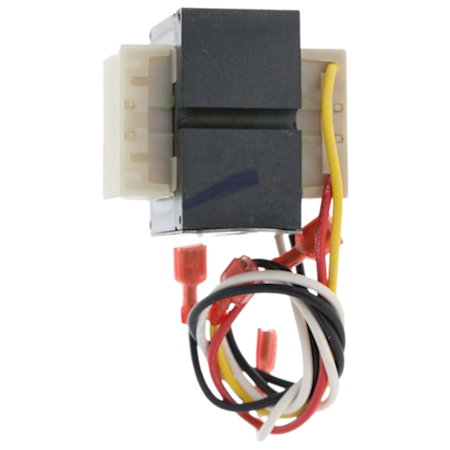

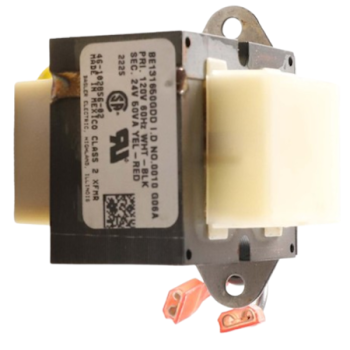

The Rheem 46-102856-02 is a 50VA transformer designed to convert a primary voltage of 120V to a secondary voltage of 24V at a frequency of 60 Hz. The CSA-certified and UL-recognized transformer features lead wires equipped with 1/4" insulated female quick-connects, facilitating straightforward integration into HVAC systems. It has a compact design and a two-hole mounting configuration, ensuring ease of installation and compatibility with various setups.
Compatible with the following models:
| R96VA0402317MSA R96VA0602317MSA R96VA0702317MSA R96VA0852521MSA/MSB R96VA1002521MSA R96VA1152524MSA |
R97VA060M317USA R97VA070M317USA R97VA085M521USA R97VA100M521USA R97VA115M524USA |
| Primary Voltage | 120V |
|---|---|
| Secondary Voltage | 24V |
| Frequency | 60 Hz |
| Power Consumption | 50 VA |
| Approvals | UL-recognized and CSA-certified |
