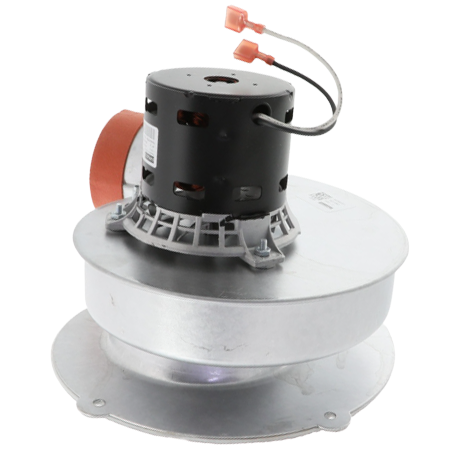

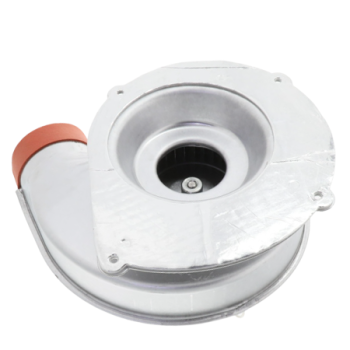

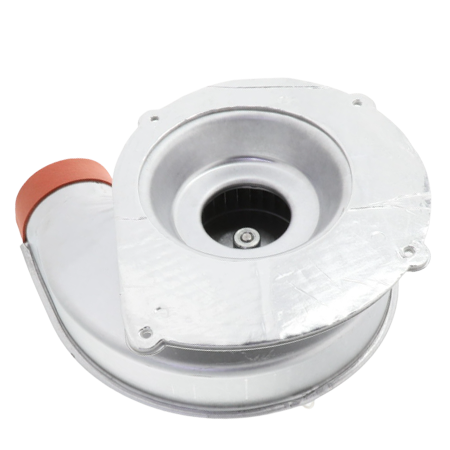

Rheem 70-101087-81 Induced Draft Blower Assembly with Gasket 120V

Name: Rheem 70-101087-81 Induced Draft Blower Assembly with Gasket 120V
Brand: Rheem
SKU: 70-101087-81
Price: 280.58 USD
Availability: InStock

Images for general purposes only. Actual may be different than depicted.

Rheem 70-101087-81 Induced Draft Blower Assembly with Gasket 120V

SKU: 70-101087-81

Brand:

Rating:

Quantity	Price	Stock
43 Usually Ships 1 - 2 Weeks	$280.58 /ea	43

Add to Cart

Add to Wishlist

Add to Cart

Add to Wishlist

The 70-101087-81 is a single-phase induced draft blower assembly that has an electrical rating of 120V, 0.6A, and 60 Hz frequency. The motor rotates at a speed of up to 3,000 RPM. UL-recognized.

The induced draft blower assembly is suitable for gas furnace applications. The 68-22850-01 gasket accessory is also available.

Check out the compatible models:

80LJ-05
80LJ-07
80LJ-10
80LJ-12
80LJ-15
80LS-05
80LS-07
80LS-10
80LS-12E-D
80LS-15E-D
80PJ-05
80PJ-07
80PJ-10
80PJ-12
80PJ-15
80PS-05
80PS-07

80PS-10
80PS-12E-D
80PS-15E-D
S801CB-075-3-17-ZSA
S01CB-075-3-17-ZXA8
GF801D
GF801U
R801CA
R801CB-075-3-17
R801PA-050-3
R801PA-075-3
R801PA-075-4
R801PA-100
R801PA-125
R801PA-150-5-24
R801SA-050-3-14
R801SA-075

R801SA-100
R801SA-125-5-24
R801TA-050-3-14
R801TA-075
R801TA-100-5
R801TA-125-5-24
R801TB-075-3-17
RGLH-0
RGLH-1
RGLJ-0
RGLJ-1
RGLS-0
RGLS-1
RGLT-07
RGLT-10-B-R-M
RGLT-12-A-R-M
RGPH-0

RGPH-1
RGPJ-0
RGPJ-1
RGPN-0
RGPN-1
RGPP-0
RGPP-1
RGPS-0
RGPS-1
RGPT-0
RGPT-1
S801CA-050-3-14
S801CA-075
S801CA-100-5-21
S801CA-125-5-24
S801PA-050-3-14
S801PA-075

S801PA-100
S801PA-125-5-24
S801PA-150-5-24
S801SA-050-3-14
S801SA-075-3-17
S801SA-075-4-17
S801SA-100
S801SA-125-5-24
S801SA-150-5-24
S801T-MSA
S801TA-050-3-14
S801TA-075
S801TA-100-5-21
S801TA-125-5-24

Voltage	120V
Frequency	60 Hz
Amperage	0.6A
Rotation Speed	3,000 RPM
Approval	UL-recognized

Be the first to write a review

Q & A: Ask the Questions, share answers

Do you have questions about this product?

Submit a New Question

Do you have the depth measurements for this unit? You mentioned it is the replacement part for 7058-0049 but it doesn’t look like it would fit in my furnace housing and be able to get the panel on. Thanks for your time.

Asked on January 10, 2019 by John from Papillion nebraska

1 Answers

Have an answer? Click Here

Unfortunately we do not have any drawings of this unit. However, we do have data that shows the Fasco 7058-0049 as Rheem 70-101087-81 since 2008.

Replied on January 11, 2019 by Ori from Industrial Stores
