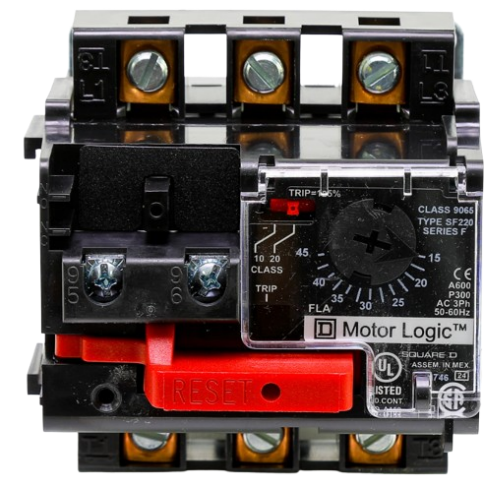

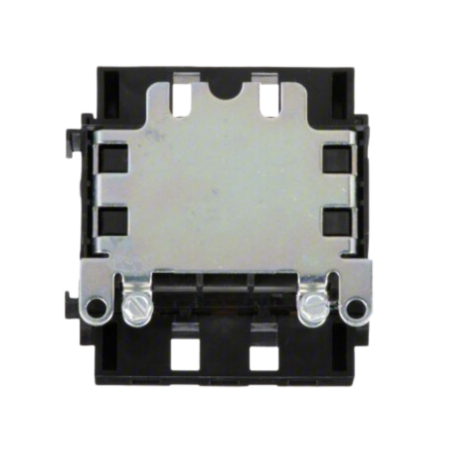

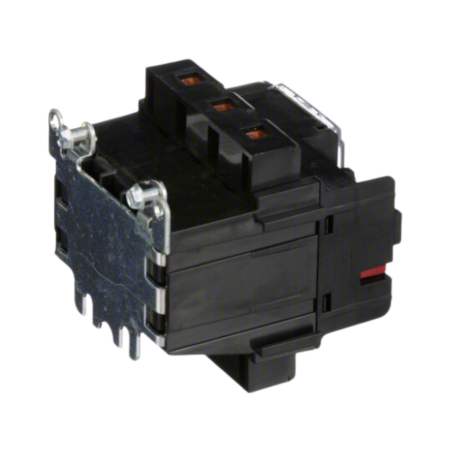

The Schneider Electric (Square D) 9065SF220 is a 3-phase solid state overload relay that operates at 600VAC contact rating and 15 to 45A current range. CE Marked, CSA Certified, and UL Listed.
Features:
The 9065SF220 is the direct replacement for 047H1014 and 047H1015 (if mounted directly to contactor, the contactor must also be upgraded). Suitable for use with a 3-pole and NEMA size-2 starters. It is also used on Type S full voltage non-reversing/reversing combination starters.
| Mounting Support | Panel |
|---|---|
| Reset Type | Manual |
| Trip Class | 10/20 |
| NEMA Size | 2 |
| Current Setting | 15 to 45A |
| Contact Rating | 600VAC |
| Frequency | 50/60 Hz |
| Number of Phase | 3-Phase |
| Number of Pole | 3-Pole |
| Auxiliary Contact Form | 1NC |
