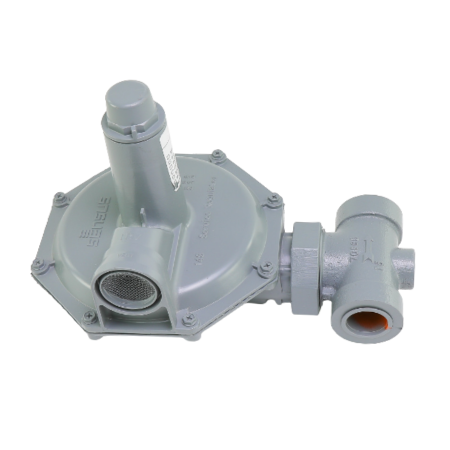

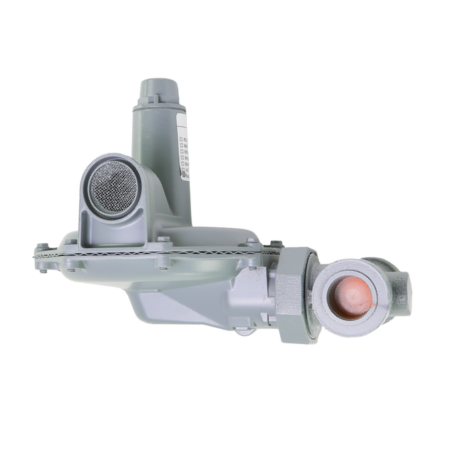

The Sensus 143-IRV-HP-1 is a general-purpose gas pressure regulator made of cast iron, featuring a 1" NPT connection and a 1/2" aluminum orifice.
This component regulates and maintains consistent gas pressure. It can handle up to 125 psi inlet pressure and operates within a 2 to 6 psi pressure range with a black spring.
Ideal for gas services in residential, commercial, and industrial applications, including boilers, burners, and unit heaters using natural gas.
| Gas Type | Natural Gas |
|---|---|
| Normal Pressure Range | 2 to 6 psi |
| Orifice Size | 1/2" |
| Connection Size | 1" NPT |
| Spring Color | Black Spring |
| Valve Body | Cast Iron |
| Orifice Material | Aluminum |
| Spring and Lower Case | Die Cast Aluminum |
| Operating Temperature Range | -20 to 150°F (-28.9 to 65.5°C) |
| Maximum Inlet Pressure | 125 psi |
Download Product Information:
Sensus (Rockwell-Equimeter) 143-IRV-HP-1 Technical Data Sheet
By Antonio
from Doral FL
Yes, I would recommend this product to a friend or co-worker
great product, good quality
By Antonio
from Doral FL
Yes, I would recommend this product to a friend or co-worker
This item is perfect to work industrial oven
By Antonio
from Doral FL
Yes, I would recommend this product to a friend or co-worker
I like their fast and excellent service and the quality of their products.
