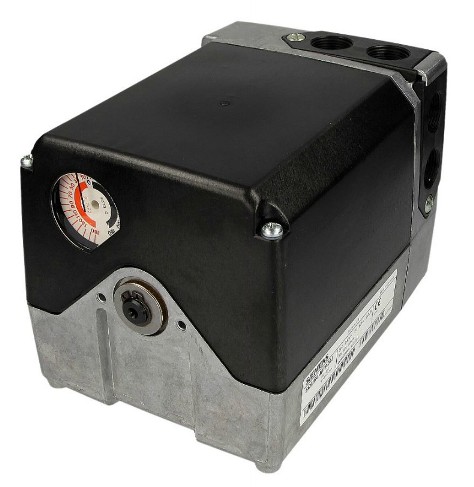

SQ5M...reversing actuators are used for the position of flow control valves, butterfly valves, dampers, or any application requiring rotary motion.  The SQM5 actuators accommodate control input signals of 4 to 20mA, 0 to 135, 0-10 VDC or 0-20 mA position proportional and floating control.  SQM5 actuators are available with up to six internal, easily adjustable switches.

A selection of exchangeable circuit boards provide a variety of functions including auto/manual selector switch, manual forward/reverse toggle switch, zero and span adjustment, parallel or master/slave operation, split range control, input signal override, and selectable electronic linearization.

The SQM5 is engineered for precision.  It is particularly well suited for applications requiring a high degree of modulating accuracy and repeatability.

The SQM5 actuator may be mounted in any position.  A selection of mounting brackets and shafts provides installation felxibility and allows for the simple replacement of most compettitve actuators.
