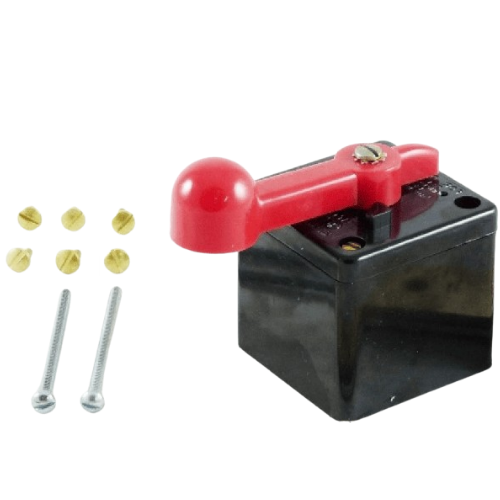

Siemens Industrial Controls (Furnas) Controls A14 Drum Controller

Siemens Industrial Controls (Furnas) Controls A14 Drum Controller
Images for general purposes only. Actual may be different than depicted.
Siemens Industrial Controls (Furnas) Controls A14 Drum Controller

Siemens Industrial Controls (Furnas) Controls A14 Drum Controller

SKU: A14
Rating:
Quantity Price Stock
3
Call 1-866-494-4610 for stock
$559.20     /ea
3
0
$0.00
0
$0.00
0
A14

Class 58 Drum Controllers start, stop and change the speed and/or rotating direction of reversible AC and DC electric motors. Most Controllers are available in NEMA 1 or NEMA 4 enclosures. The Compact A Series of controllers offers Reversing, Two Speed and Two Speed Reversing controls in NEMA 1 enclosures for applications where space may be restricted.

Download Product Information:

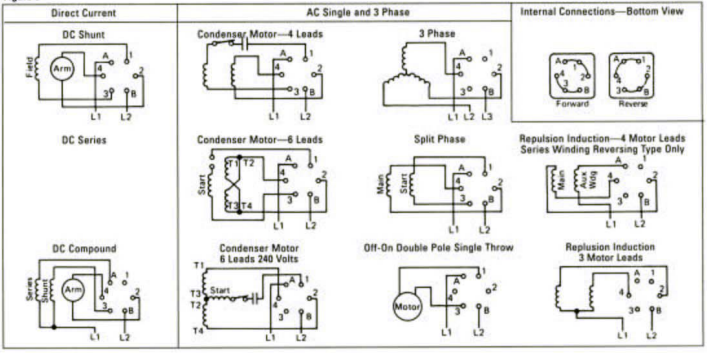

A14 Wiring Diagram

A14 Dimensions

Q & A: Ask the Questions, share answers

Do you have questions about this product?


Q:
wiring diagram for this switch?
Asked on May 09, 2025 by ted from Pioneer, Ohio
1 Answers

Have an answer? Click Here

A:
A wiring diagram for the A14 Drum Switch is available under the Technical Data section of our Product page.

Click here to view.
Replied on May 14, 2025 by Brian from Industrial Stores
