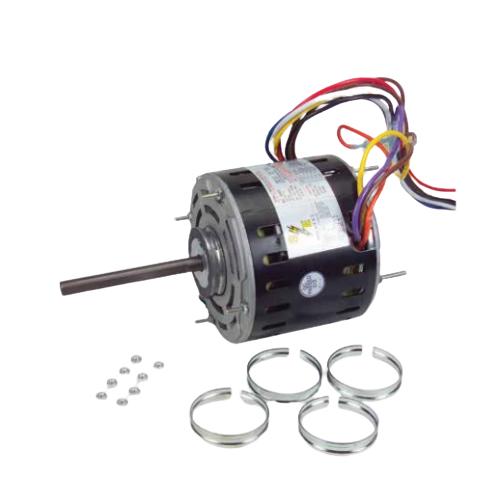

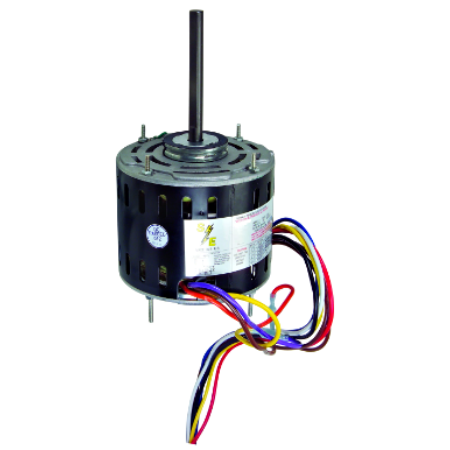

The Smart Electric SE3466 is a semi-enclosed Power Direct Drive Fan & Blower Motor for Multi-horse power application. A permanent split capacitor type blower motor featuring continuous air over, 3 speeds, and thermal protection. Available with different Horsepower ranging from 3/4 to 1/5.
| Model No. | Horsepower | Amperage | Capacity @ 280V | Speed |
| SE3466 | 3/4 | 9.1 | 10 MFD | ALL |
| 1/2 | 6.8 | 10 MFD | ALL | |
| 1/3 | 5.5 | 5 MFD/7.5 | ALL | |
| 1/4 | 3 | 5 MFD/7.5 | L, ML, MH | |
| 1/5 | 2.3 | 5 MFD/7.5 | L, ML |
| Bearing | Ball |
|---|---|
| Motor Type | Totally Enclosed |
| Operating Temperature | 32°F - 104°F (0°C - 40°C) |
| Rotation | Reversible |
| Voltage | 115V |
| RPM | 1075 |
Download Product Information:
Smart Electric Multi-Horsepower Direct Drive Fan & Blower Motor Catalog
