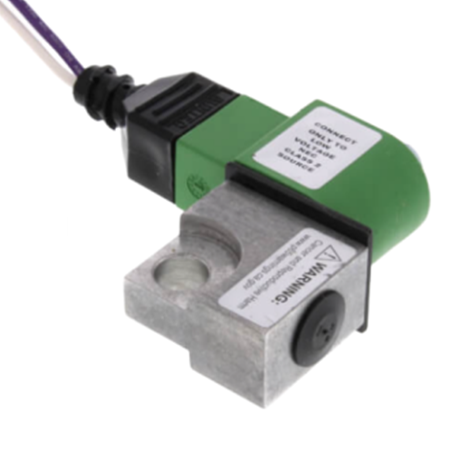

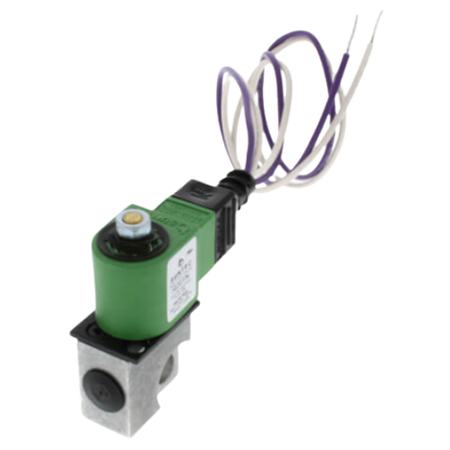

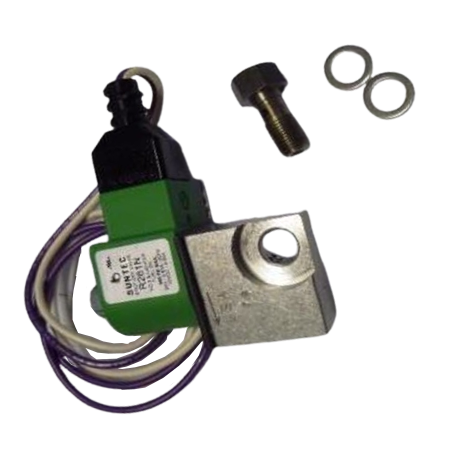

The R261NL is a genuine OEM non-delay solenoid valve pump mount designed for Suntec A and B series pumps consisting of a coil, tube assembly, pigtail, valve block, base, and nozzle screws. It operates on 12VDC at 0.60 amps or 24VAC at 50/60 Hz, 16 GPH flow rate, and a 300 psi maximum operating pressure.
The solenoid shut-off valve provides reliable fuel flow control for kerosene or #1, #2, or lighter fuel oils. It features a non-delay operating response, and redundant cutoff, and can handle. The unit is not compatible with fuel blends containing more than 5% biodiesel.
The R261NL is easy to install, with direct mounting onto the fuel pump. The 1/8" FPT inlet also allows for secure connections for optimum operation.
| Application | Suntec Pump A and B Series |
|---|---|
| Connection Size | 1/8" FPT |
| Media | Kerosene or #1, #2, or Fuel Oil |
| Maximum Operating Pressure | 300 psi |
| Flow Rate | 16 GPH |
| Frequency | 50/60 Hz |
| Amperage | 0.60A |
| Voltage | 24VAC/12VDC |
| Maximum Fluid Temperature | 75°F (24°C) |
| Approvals | UL-recognized and CSA-certified |
